Item NO. | Item | Specification |
1 | Raw material | Galvanized steel sheet & pre-painted steel sheet, color steel coil |
2 | Feeding width | Do based on the last confirmed design |
3 | Forming width | Do based on the last confirmed design |
4 | Thickness | 0.3-0.9mm |
5 | Weight | About 6.5Tons |
6 | Dimension of main machine | About 9500mm*1400mm*1500mm |
7 | Shaft steps | 18 steps/ 20steps |
8 | Rolling speed | 0-15m/min |
9 | Transmission | By chain |
10 | Size of Chain | 1.5mm |
11 | Material of Frame | 350 H steel |
12 | Thickness of middle plate | 16mm |
13 | Diameter of Shaft | 85mm |
14 | Material of Roller | GB 45# Steel with quenching and tempering |
15 | Power of main motor | 7.5KW |
16 | Material of Hydraulic cutter | Cr12Mov steel with quenched treated 60-62°C,hardening and tempering |
17 | Power of hydraulic pump station | 4KW |
18 | Control system | Full automatic control |
19 | Voltage | 380V,50HZ,3PH. We also can do based on your country need |
Cutter head:
1).Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.The tolerance is within 10m±1mm Material of blades: Cr12 quenched Power supply : hydraulic power Components: It contains one set of blade, one hydraulic tank and one cutter machine.
Pump station:
1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube
2). 4kw will be adopted as per your profile sheet.
PLC control box:
1).PLC brand: Normally, it is Delta (TaiWan Brand) with transducer.
2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.

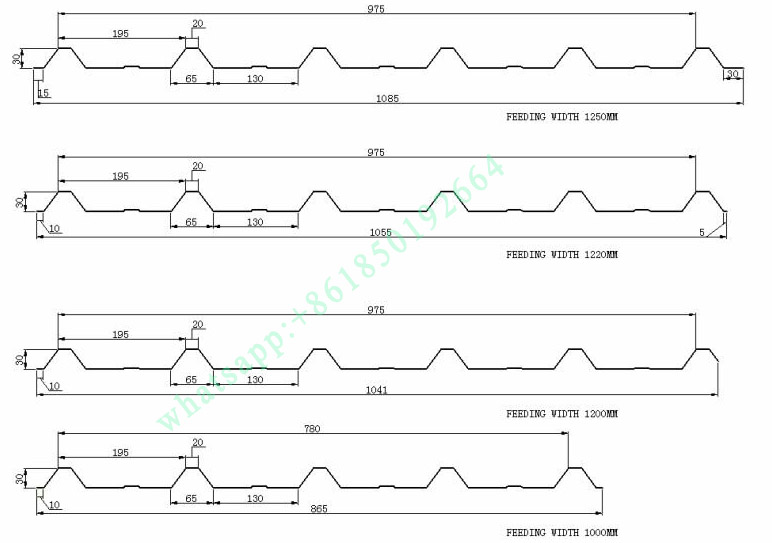

Profile:

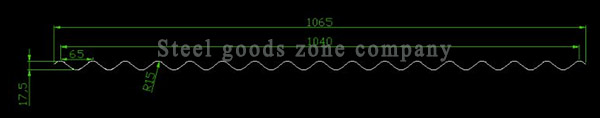

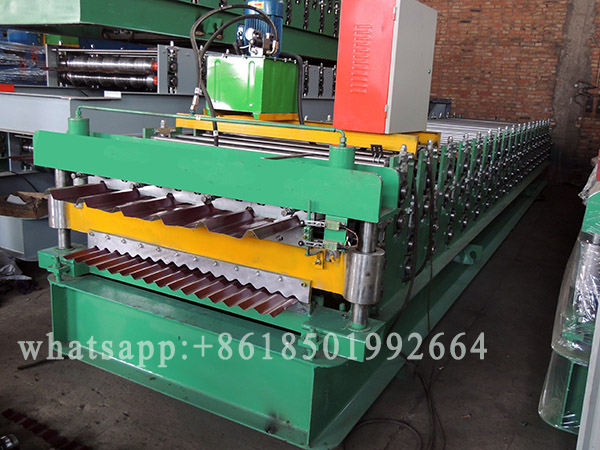

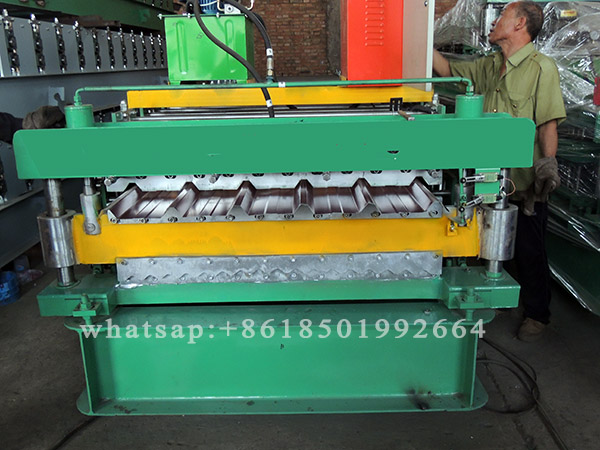

Pakistan Colour Coated Two Profile Sheets Forming Machine 975-1040 Model:
