Description

Inverted Box Rib Double Layer Roll Forming Machine

Inverted Box Rib Double Layer Roll Forming Machine is designed to make the Inverted Box Rib IBR tile by rolling forming machine . The Metal roof sheet is widely used in many kinds of industrial factory, civilian buildings, It has advantage of pretty appearance, durable using and so on. By the double layer design, it can save cost and space .

1, Accessories of Inverted Box Rib Double Layer Roll Forming Machine:

1). Manual decoiler

Working capacity:5T

Coil inner diameter:450-550mm

2). PLC control cabinet Of Inverted Box Rib Double Layer Roll Forming Machine

PLC brand:Delta,Siemens or Mitsubish (as requested)

Low voltage components:Schneider

All PLC control cabinent are quipped with aviation plug, very easy to install,saving labor and time.

2, Main Machine Details Of Inverted Box Rib Double Layer Roll Forming Machine:

1), Feeding width : 914mm-1250mm(as request)

2), Length of the sheet: as customer's request

3), Raw material : GI,PPGI,GL,PPGL

4), Roller station : 13 Stations/ 15 Stations

5), Motor power : 5.5Kw

6), Voltage : 380V,50HZ,3PH or as customer's request

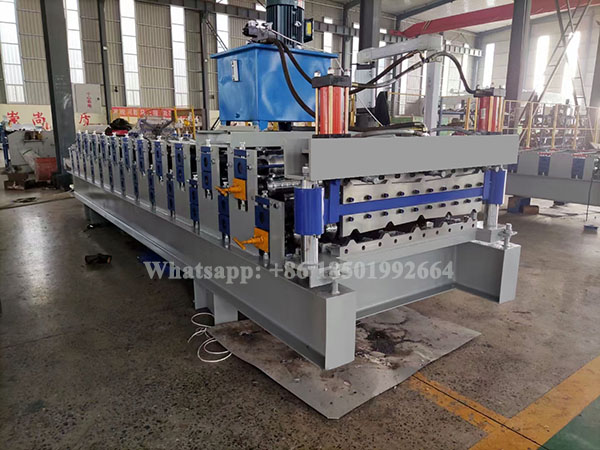

Inverted Box Rib Double Layer Forming Machine.jpg
