3), Guarantee period : within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4), Easy operation : All machine cotrolling by PLC computer controlling systerm.

5), Elegant apperance : Protect the machine from rust and the painted colour can be customized

6), Reasonable price:We offer the best price in our industry.

2, Our Machine Main Accesories

1), Main machine

The function of the main machine is roll forming the steel sheet to the profile customer the steel sheet to the profile customer want and then cut the steel sheet into piece. The material of our roller is GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to keep from rust.

2), PLC computer controlling system

You can set the running speed/length/batch/pieces of the steel sheet on the PLC computer touch screen,Then the machine can running auto or you can choose the manual mode. The whole operation process are easy to understand.

3), Hydraulic system

Using for punching holes/punching logo/cutting steel sheet need put hydraulic oil into the oil tank.

4), Decoiler

This one is 5 ton manual decoiler.. There are still hydraulic decoiler.you can choose what you need hydraulic decoiler can improve the production efficiency by feeding the material automatic.

3，Double layer roof wall machine Technical Parameter:

1）Machine size ： 9000*1500*1200mm

2）Machine weight ：7000kg

3）Machine power ：7kw

4）Hydraulic engine ：3KW

5）Roll speed ：8-10M/Min

6）Roll stations ：14+16 Stations

7）Roller material：GCr15

8）Effective width ：900mm

9）Feeding width ：1m/1.2mm/1.22mm

10) Voltage ：380V 60Hz 3PH/Customized

11）Material thickness ：0.3-0.7/Customized

12）Control System ：Schneider/Delta/Customized

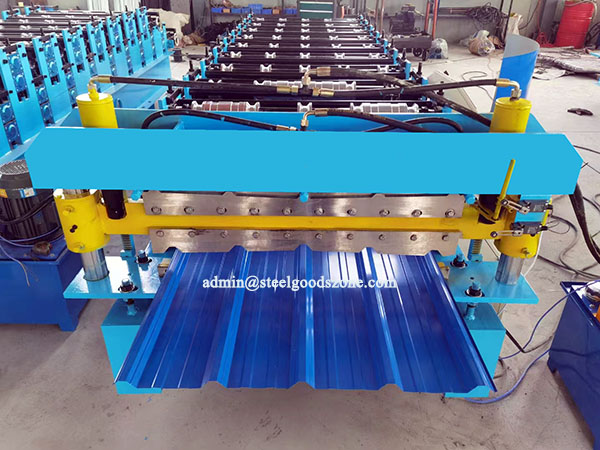

Double Layer Roof Tile Sheet Roll Forming Machine.jpg
