Doulbe Layer Glass Tile and Cladding Roofingg Sheet Roll Forming Machine
Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description
Double Layer Glass Tile and Cladding Roofing Sheet Roll Forming Machine
Double layer glass and cladding roof tile roll forming machine id one machine with two layer. It can produce two different profile of roof or roof or wall panel sheet by one machine. In this way, it can save the cost and space for the clients. If you capital and workshop is limited, this machine will be your best choose.

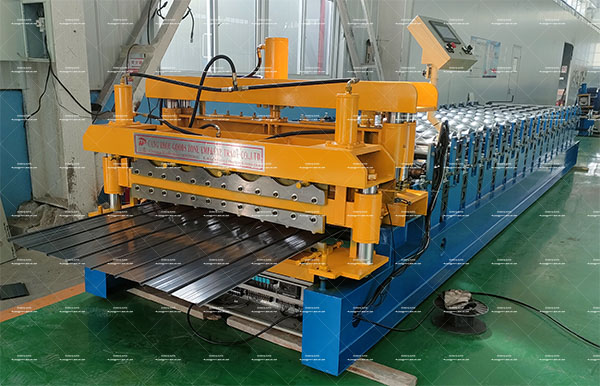

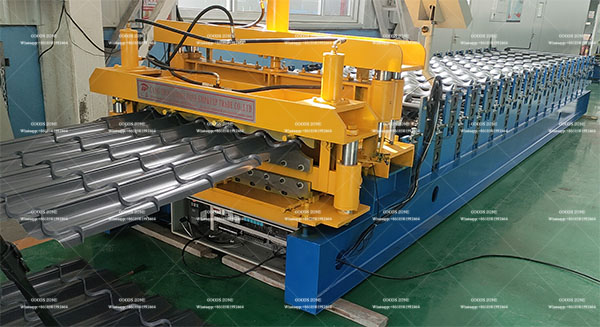

Picture of Glass and Cladding Roll Former

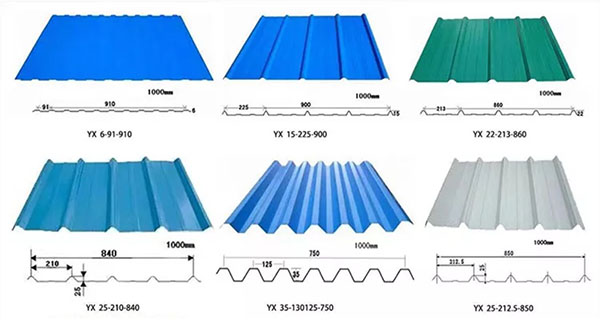

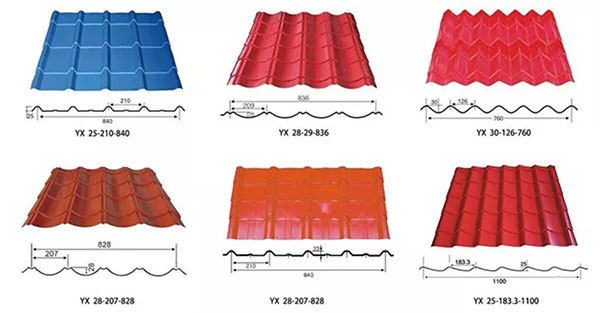

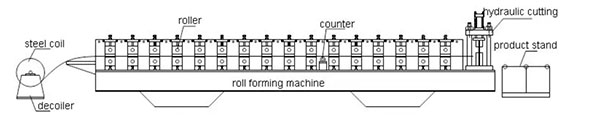

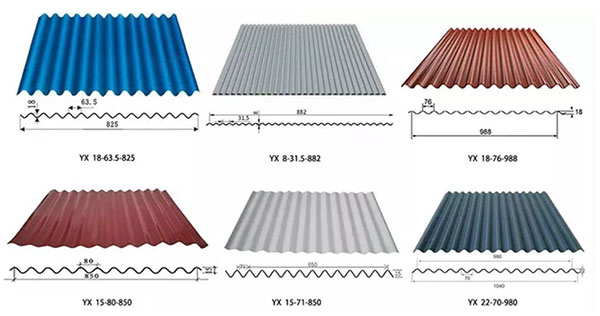

Specification of Glass Tile and Cladding Roofing Sheet Machine *Suitable Material: Colored steel plate, galvanized plate, or aluminium plate *Material Thickness: 0.8-1.2mm *Material Width: 1250mm(according to the profile) *Diameter of shaft: 70mm *Roller Station: 14 Steps + 15 steps (according to the profile) *Sidwall Thickness: 18 mm *Main Frame: 300H Steel *Motor Power : 4KW +4KW * Speed: 8-15m/min *Cutting Device: Hydraulic Cutting *Material of Blade: Cr12 *Drive Way: By Chain Working Flow of Glass and Cladding Roofing Sheet Machine Different Kind of Roofing Sheet We can design different kind of roofing panel machine according to customer' requirements Corrugated Sheet (Water Wave Panel) Glazed Roofing Sheet(Step Panel)
