Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding
  • Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding

Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Main parameter of Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding:

1), Length of the main part: 6500*1400*1300mm

2), Weight of main part: About 4.5 t

3), Voltage: 380V/50HZ3Phase (as customer's request)

4), Middle Plate:  16mm

5), Drive mode: By chain

6), Material of rollers: 45# steel with tempering

7), Material of shafts: 45# steel with tempering

8), Diameter of shafts: φ70mm

9), Number of rollers: 15/16 Stations

10), Main power: 5.5kw (Cycloidal planetary gear speed reducer)

11), One Machine Can make two Roofing Sheets Profiles

12), Warranty: One year

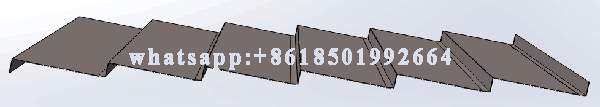

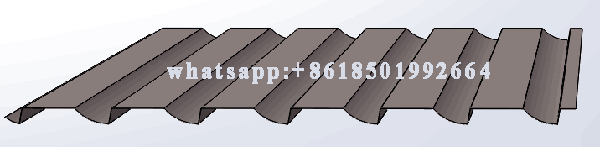

13), Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding Drawing:

Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding.png

Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding.png

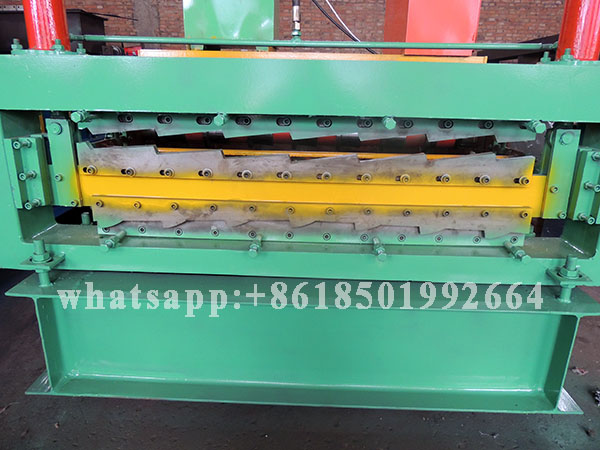

14), Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding Cutter:

Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding.JPG

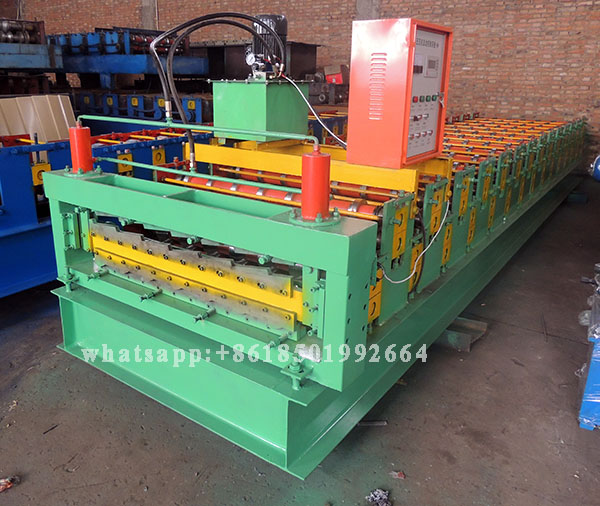

15), Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding :

Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding.JPG

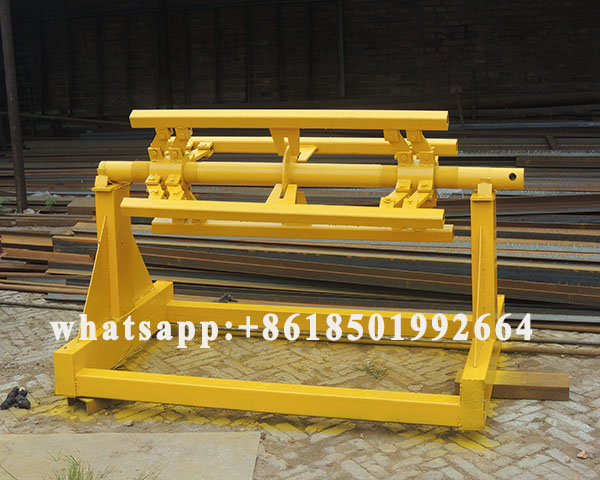

16), Banawe Roof And Wall Roll Forming Machine Europe Cladding Manual decoiler:

Double Layer Banawe Roof And Wall Roll Forming Machine Europe Cladding.JPG
