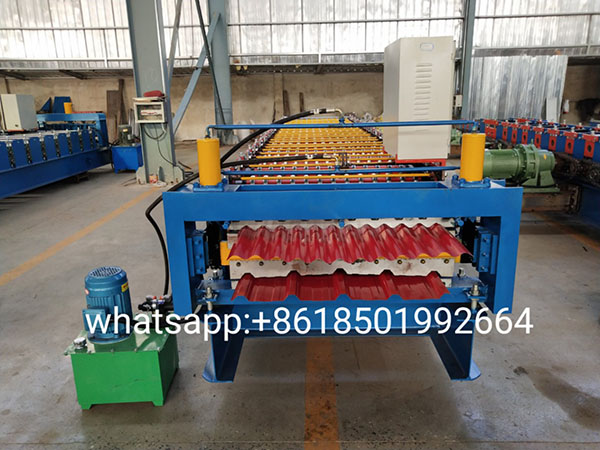

Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa

Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa perfectly combined two different-model machines together, this can save the space and also is easy to operate. The two models are chose according to customer's need.

1, Working Flow of Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa:

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

2, Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa Main Technical date:

1). Processing Material: PPGI,GI

2). Processing Thickness(mm): 0.3-0.7mm

3). Material of Rollers: 45# steel, with hard chrome coated

4). Diameter of Shaft: 75mm

5). Production Speed: 0-20m/min

6). Roller Driven: Decelerating Motor Chain Transmission

7). Cutting Model: Hydraulic Profile Cutting

8). Length Measurement: Encoder

9). Control Style: PLC

10). Operation Model: Touching Screen

11). Total Power: 8kw

12). Voltage: 380V 50HZ or at buyer's request

13). Testing Material: Q195

14). One machine can make two different sheet profiles

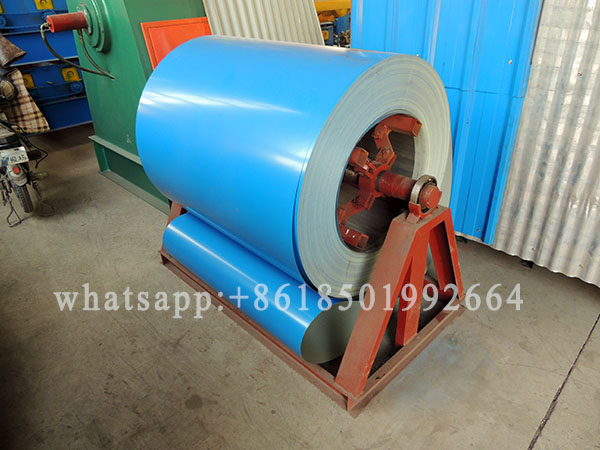

3, Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa Decoiler:

Manual decoiler: One set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1250mm Coil range:470-550mm

Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa.JPG

4, Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa:

Corrugation Profile And Rib Profile Double Layer Roofing Roll Forming Machine For South Africa.jpg
