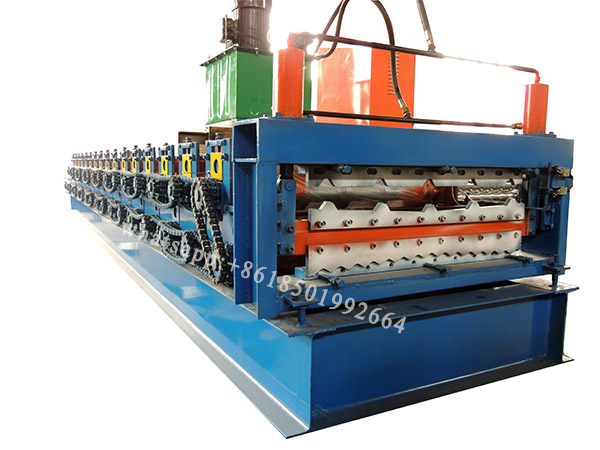

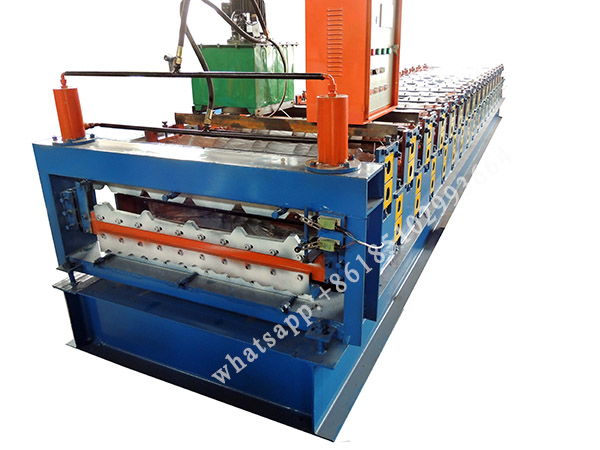

Our company can customize different Corrugated IBR Double Deck Rollformer For India based on client's requirement. This kind of roofing system panels are pre-fabricated in our Steel Plant , widely used for warehouse, factory or other steel construction.
Roller material: 45# steel plated with chrome
Roller station steps: Up layer 13 Stations; down layer 15 stations
Main motor power: 4KW
Hydraulic station power: 4KW
Control system : Full Automatic Control And Manual Control
PLC brand: Taiwan delta
Processing Thickness: 0.3-0.7mm
Material of Rollers: 45# steel, with hard chrome coated
Diameter of Shaft: 70mm
Production Speed: 0-20m/min
Roller Driven: Chain Transmission
Cutting Model: Hydraulic Profile Cutting
Machine size: About 6.5m*1.4m*1.6m(L*W*H)
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
