Corrugated And Trapezoid Double Layer Roofing Machine
  • Corrugated And Trapezoid Double Layer Roofing Machine

Corrugated And Trapezoid Double Layer Roofing Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

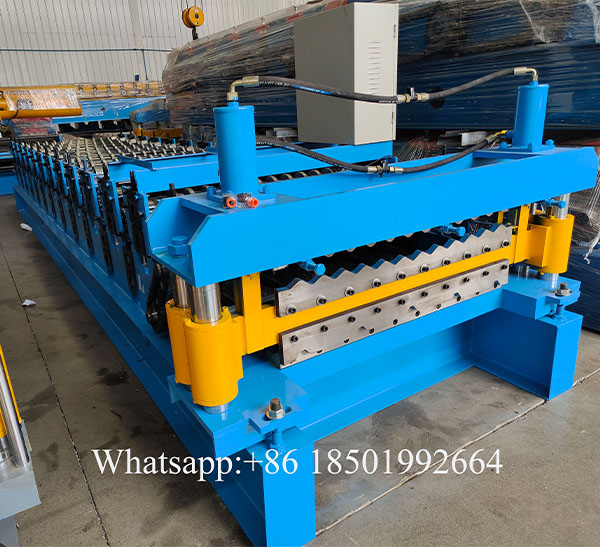

Corrugated And Trapezoid Double Layer Roofing Machine

1. Product Descriptions:

(1). Raw Material: Color Steel Sheet/Material Grade: Q235

(2). Processing Thickness(mm): 0.3-0.8mm

(3). Material of Rollers: 45# steel, with hard chrome coated

(4). Shaft Station: 13 Stations / 14 Stations

(5). Rolling Speed: 8-20m/min

(6). Size of Chain: 1.0inch.

(7). Diameter of Shaft: 70mm

(8). Cutting Materials: GCr12 steel with quenched treated 60-62°C

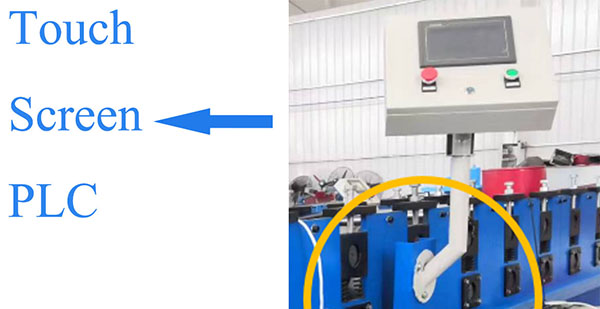

(9). Control system: PLC Control Box

(10). Cutting Way: Automatic&Manual Two Control Way

(11). One machine can make two different sheet profiles

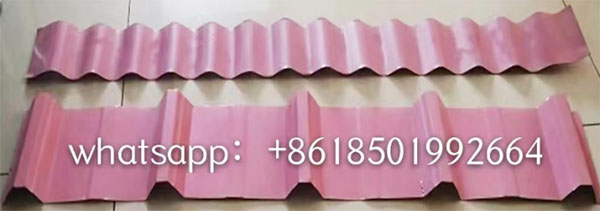

2. Sheet Profile:

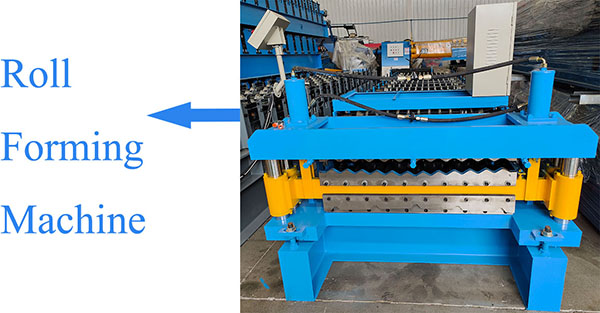

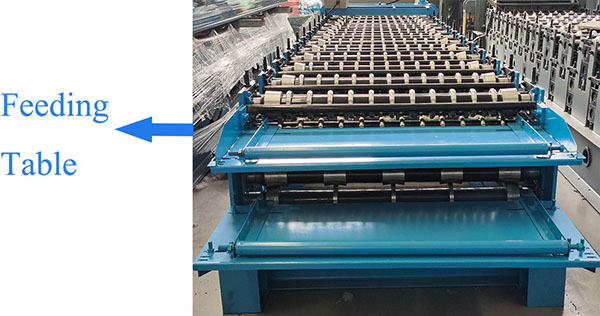

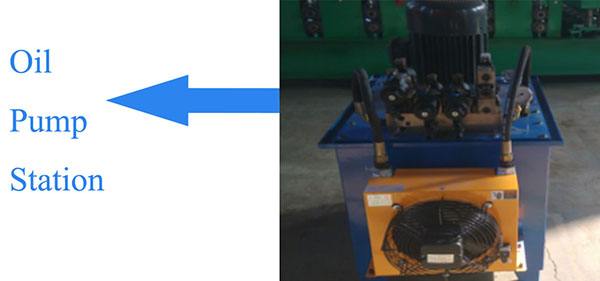

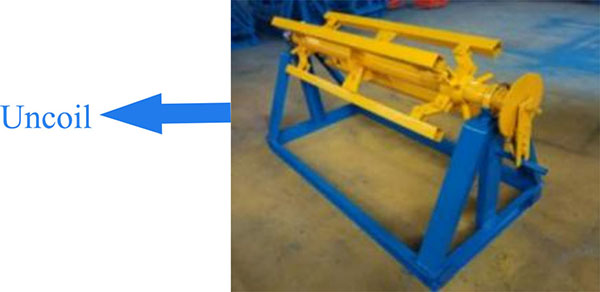

3. Main Corrugated And Trapezoid Double Layer Roofing Mchine:






4.  Product Delivery& Package:
