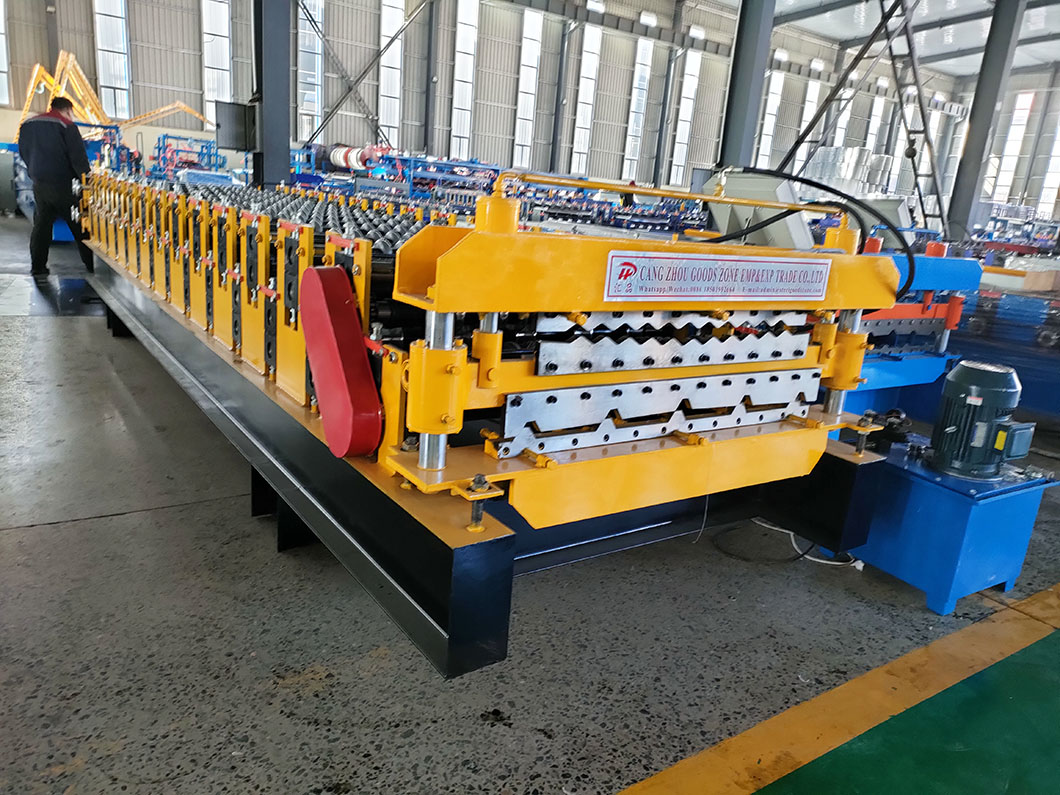

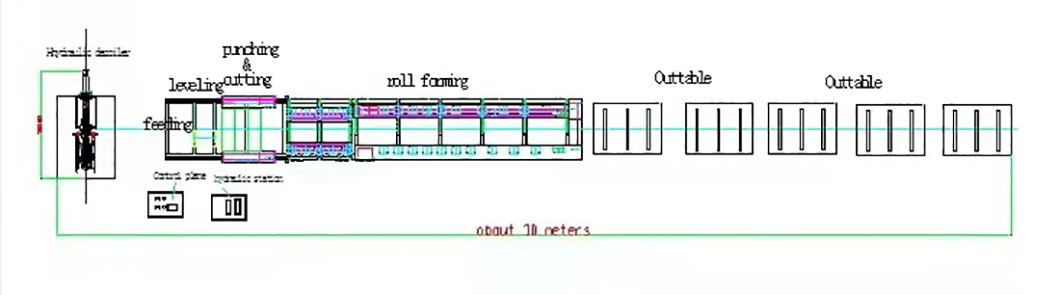

1. The Sheet Production Line Of Corrugate Eco Double Layer Roofing Roll Forming Machine
2. Product Descriptions
(1). Processing Material: PPGI,GI
(2). Processing Thickness(mm): 0.3-0.7mm
(3). Material of Rollers: 45# steel, with hard chrome coated
(4). Diameter of Shaft: 75mm
(5). Production Speed: 0-20m/min
(6). Roller Driven: Decelerating Motor Chain Transmission
(7). Cutting Model: Hydraulic Profile Cutting
(8). Length Measurement: Encoder
(9). Control Style: PLC
(10). Operation Model: Touching Screen
(11). Total Power: 8kw
(12). Voltage: 380V 50HZ or at buyer's request
(13). Testing Material: Q195
(14). One machine can make two different sheet profiles

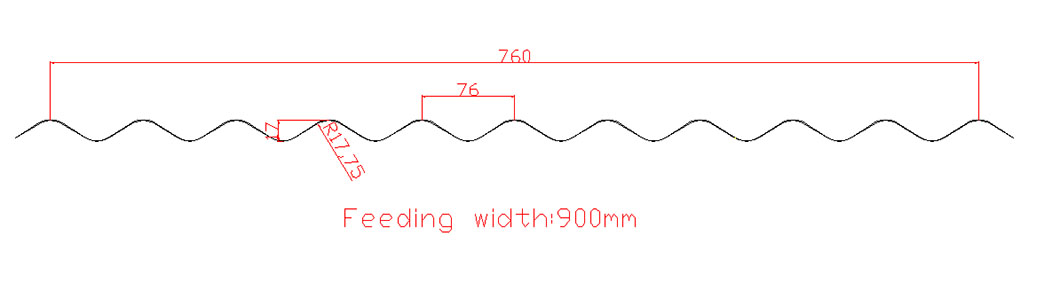

3. Finish Product Of Corrugate Eco Double Layer Roofing Roll Forming Machine

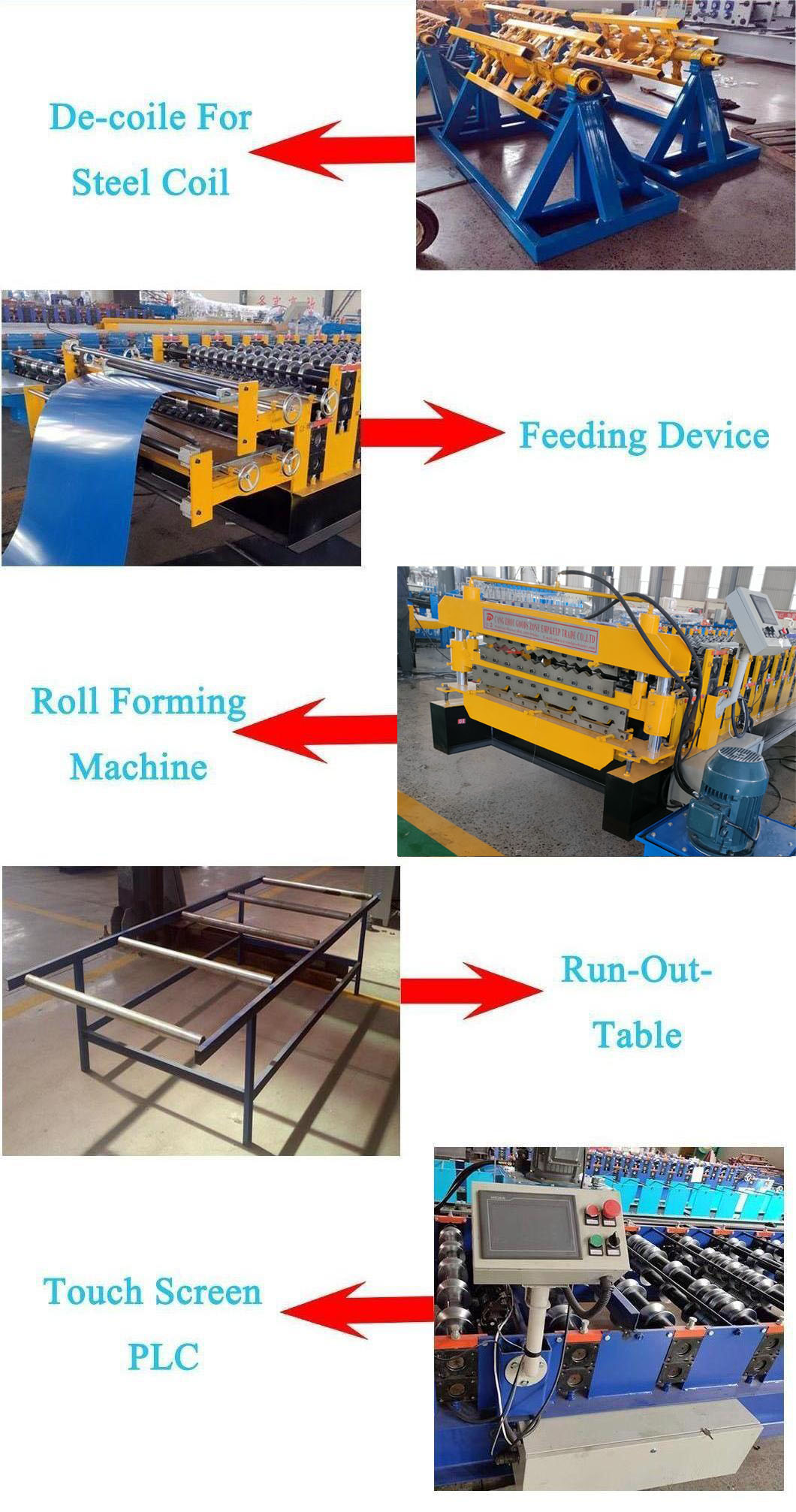

4. Main Corrugate Eco Double Layer Roofing Roll Forming Machine Parts Show

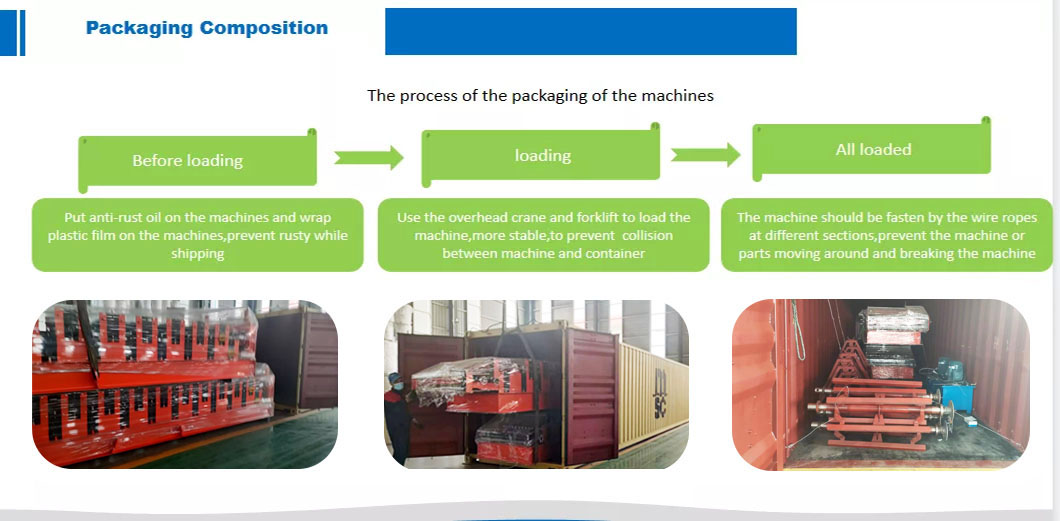

5. Product Delivery& Package
6. Related customize products
