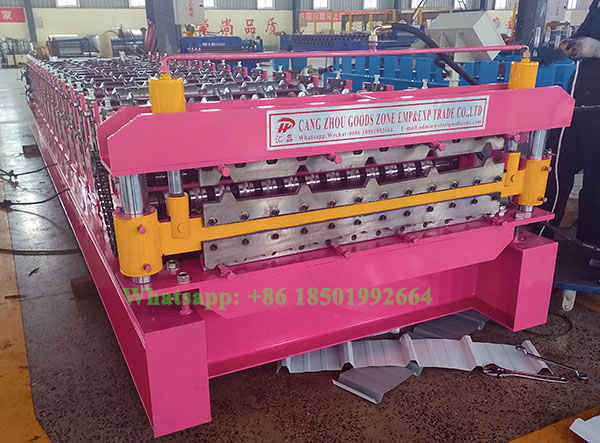

Double layer Roll Forming Machine can produce two type sheets, one Cladding sheet and one Ribtype sheet. The input material are both 1220 mm width with thickness 0.3-0.7mm. Machine speed 8-15 m per minute. This machine cheaper and stable. Widely used in philippines country. We can also supply you the PPGI and GI coils. We know some good supplier. We can put the coils with the machine in the same container.
1, Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
2, Length of the main part: About 8500 1650 1500 mm (L*W*H)
3, Weight of main part: 6.5 tons
4, Voltage : 380 V 50 HZ 3 PHASE(As customer’s need)
5, Roller fixer : Middle plate
6, Frame : 350 H steel welded
7, Drive mode: Chain
8, Material of rollers: 45# steel, surface hard chromium plating.
9, Material of shafts: 45# steel
10, Diameter of shafts: φ 70 mm
11, Number of rollers : 13 rollers(Up layer)15 rollers(Down layer)
12, Main power: 5.5 kw
