Bulgarian Glazed Tile and Trapezoidal Double Layer Machine
  • Bulgarian Glazed Tile and Trapezoidal Double Layer Machine

Bulgarian Glazed Tile and Trapezoidal Double Layer Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Bulgarian Glazed Tile and Trapezoidal Double Layer Machine
1, Machine Detailed Specifications


 (1). Materials Grade: Q235
 (2).Feeding Width: 1250mm
 (3).Effective: 1100mm/1000mm
 (4). Shaft station: 14 Stations/18Stations
 (5). Materials Thickness: 0.3-0.8mm
 (6). Materials of Frame: 350H steel welding
 (7). Shaft Materials: 45# Steel plated hard
 (8). Cutter Materials: GCr12 Steel with Quenched treated 60-62°C
 (9). The Voltage can be customized according to your requirements.

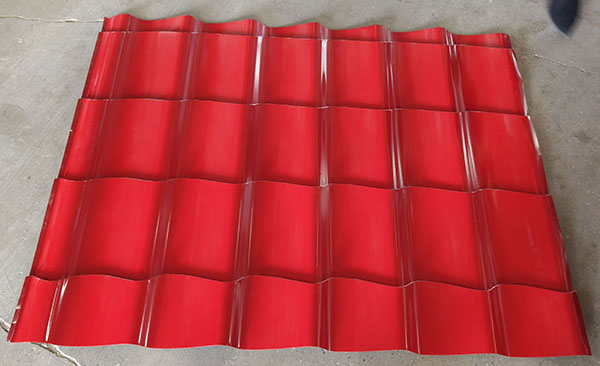

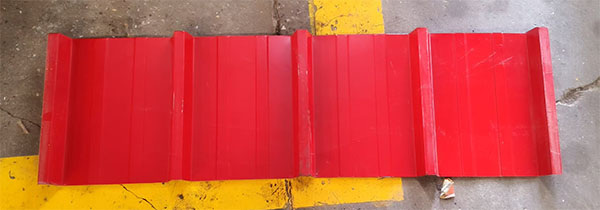

2, Sheet Profile

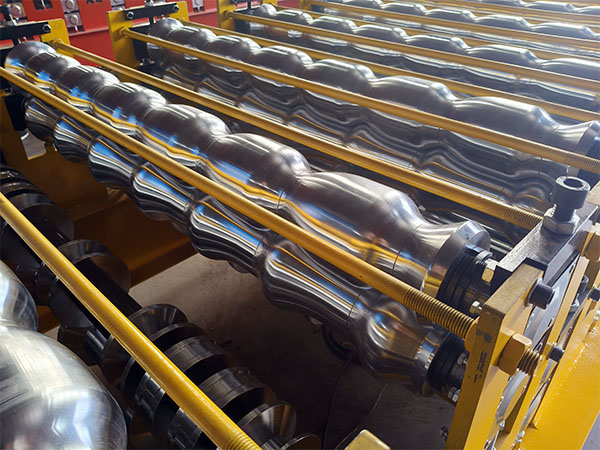

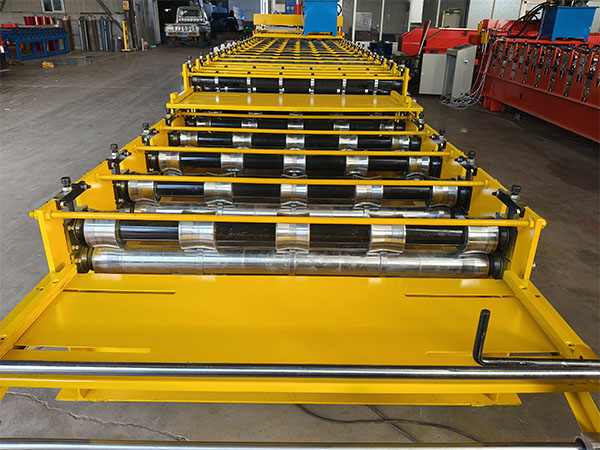

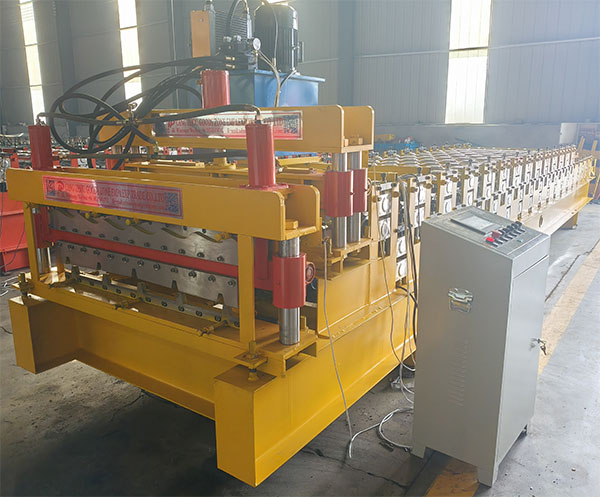

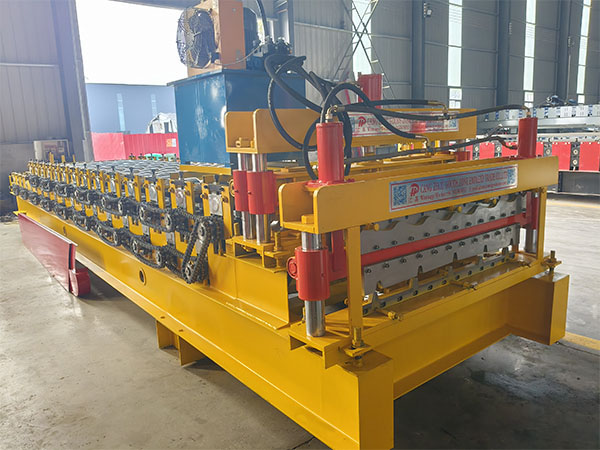

3, Main Glazed Tile and Trapezoidal Double Layer Machine
