840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric
  • 840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric

840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric

  840-910 Double Deck Metal Roof Wall Panels has been used extensively by the construction industry throughout the World for nearly two centuries. Because of its excellent corrosion resistances, it has become the preferred material for a wide range of construction uses, particularly roofing and walling.

Working Flow of 840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric:

 De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric Main Technical dates:

   Roller material: 45# steel plated with chrome Diameter of shaft: 75mm

   Roller station steps: Up layer 11 Stations; down layer 13 stations

   Main motor power: 5.5KW

   Hydraulic station power: 4KW

   Control system : Full Automatic Control And Manual Control

   PLC brand: Taiwan delta

   Processing Thickness: 0.3-0.7mm

   Material of Rollers: 45# steel, with hard chrome coated

   Diameter of Shaft: 75mm

   Production Speed: 0-20m/min

   Roller Driven: Decelerating Motor Chain Transmission

   Cutting Model: Hydraulic Profile Cutting

840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric' Product:

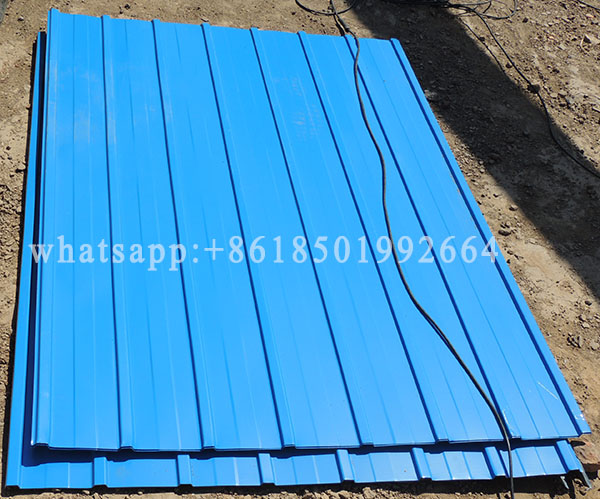

840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric.JPG

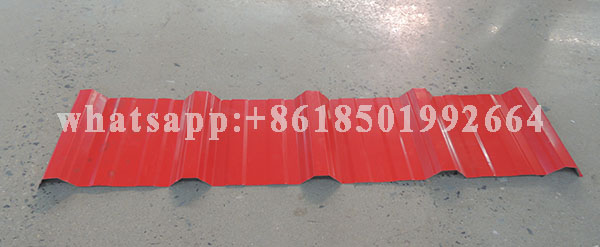

840-910 Double Deck Metal Roof Wall Panels Roll Forming Line With Automatic Electric.JPG
