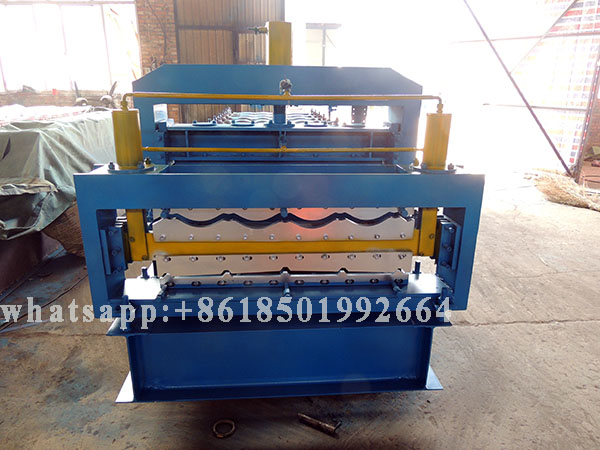

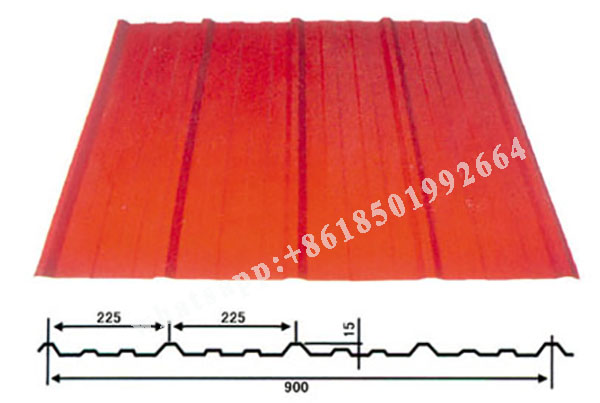

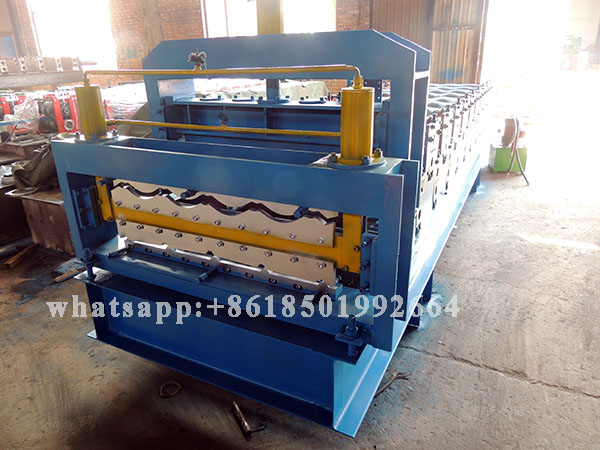

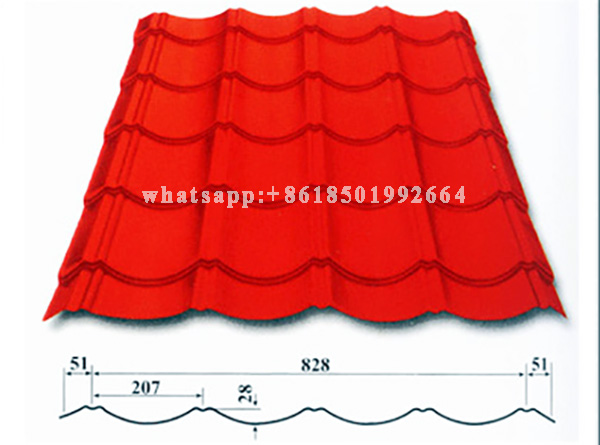

The steel tiles produced by 828 Classic Spanish Glazed Tile-900 High Rib Roofing Double Sheet Forming Machine look beautiful, elegant and noble. The products are widely used as the roof of garden, factory, hotel, exhibition center and villa and so on.
1). Electric elements: Mitsubishi PLC transducer from Taiwan.
2). Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3). Well resisting active shaft: High grade No. 45 carbon wrought steel.
4). Cutter blade: Cr12 mould steel with quenched treatment
5). Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
1), Machine Size: 7500*1500*1600mm( L*W*H depend on design)
2), Machine Weight: about 6-10 tons
3), Main frame: 300/350/400mm H beam steel
4), Voltage : 380V/50HZ/3PH or customize
5), Motor Power: 4-5.5KW
6),Hydraulic Power: 3-5.5KW
7), Up layer Forming Steps:12-16 steps
8), Down layer Forming Steps : 12-20 steps
9), Roller material: High grade 45# forged steel, Plated hard chrome
10), Shafts materials: 45# steel with hard chrome coated
11), Shafts diameter: 70mm to 90mm
12), PLC control system: Delta or Siemens
13), Cutting stype: Hydraulic cutting
14), Working Speed: 8 -20m/min
15),Effective Cover Width: Based on confirmed drawing
16), Feeding Material Width: Based on confirmed drawing
