700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine
  • 700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine

700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine Main technical dates

1). Processing Material: PPGI,GI

2). Processing Thickness(mm): 0.3-0.7mm

3). Material of Rollers: 45# steel, with hard chrome coated

4). Diameter of Shaft: 75mm

5). Production Speed: 0-20m/min

6). Roller Driven: Decelerating Motor Chain Transmission

7). Cutting Model: Hydraulic Profile Cutting

8). Length Measurement: Encoder

9). Control Style: PLC

10). Operation Model: Touching Screen

11). Total Power: 8kw

12). Voltage: 380V 50HZ or at buyer's request

13). Testing Material: Q195

14). One machine can make two different sheet profiles

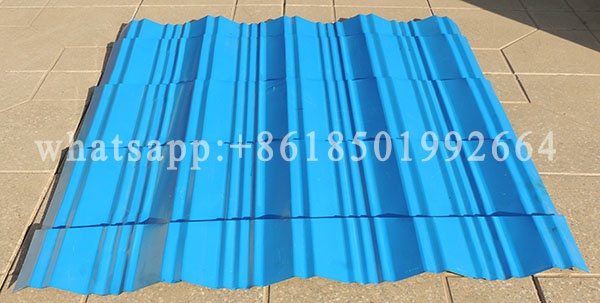

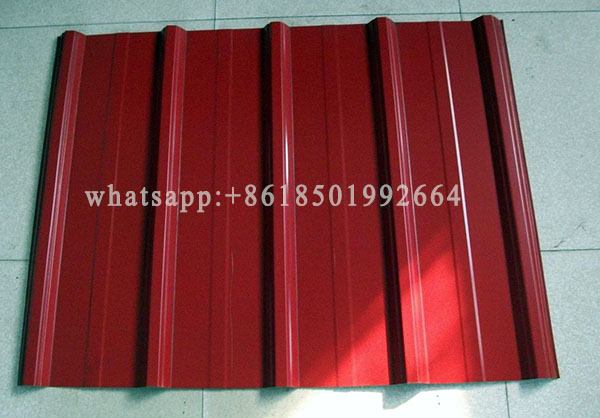

15). 700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine's Profile:

700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine.JPG

700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine.JPG

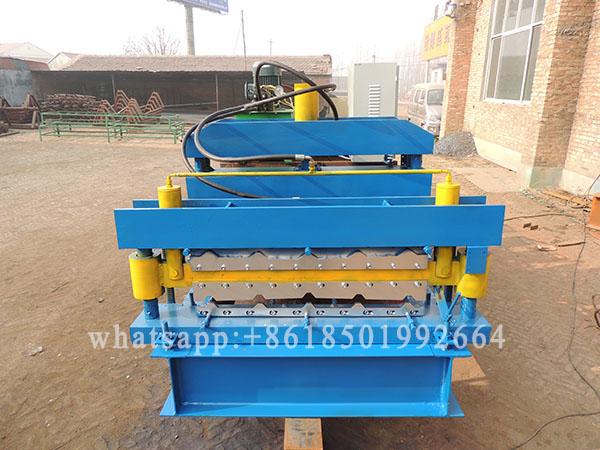

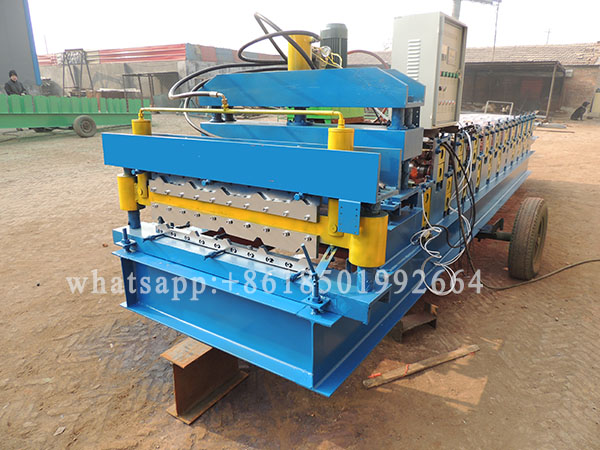

16). 700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine:

700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine.JPG

700 Glazed Tile-800 Rib Double Layer Pre Painted Galvalume Sheets Making Machine.JPG
