2 In 1 Double Layer Roof Roll Forming Machine
  • 2 In 1 Double Layer Roof Roll Forming Machine

2 In 1 Double Layer Roof Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

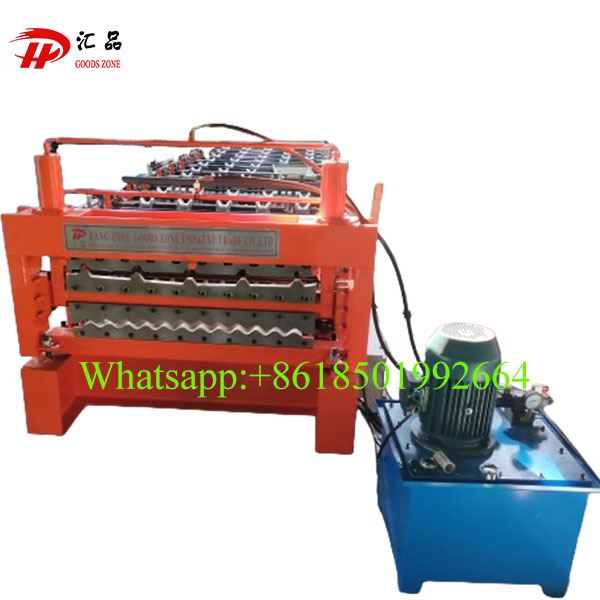

2 In 1 Double Layer Roof Roll Forming Machine

  2 In 1 Double Layer Roof Roll Forming Machine is one machine with two Layers. It can produce two different profile of roof or wall panel sheet by one  machine. In this way, it can save the cost and space for the clients. If you capital and workshop is limited, this machine will be your best choose.

Specification Of 2 In 1 Machine

*Suitable Material: colored sheet plate, glvanized plate, or aluminium plate
*Material Thickness: 0.8-1.2mm *Material Width: 1250mm (according to the profile)
*Diameter of Shaft:  70mm *Roll Station: 14 steps+15 steps( according to the profile)
*Sidewall Thickness: 18mm *Main Frame: 300H steel
*Motor Power: 4KW+4KW *Speed: 8-15m/min
*Cutting Device: Hydraulic Cutting *Material of Blade: Cr12
*Drive Way: By Chain

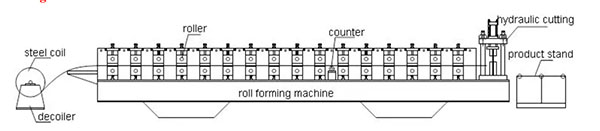

Working Flow of 2 In 1 Machine

Different Kind of Roofing Tile

We can design different kind of roofing panel machine  according to customer's requirments

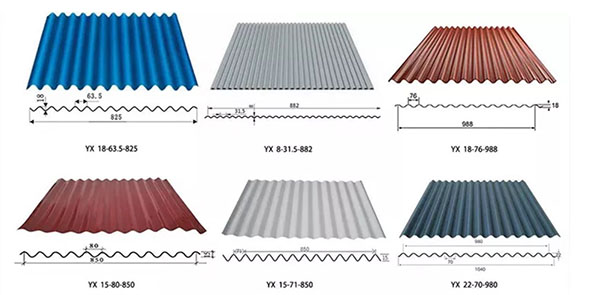

Corrugated  Sheet (Water Wava Panel)

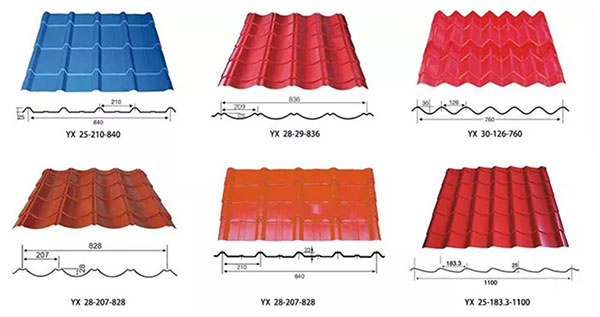

Glazed Roofing Sheet(Step Panel)

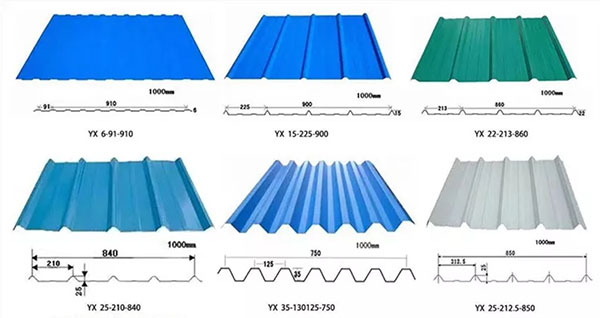

Trapezoidal Roofing Panel (IBR  Sheet)
