1250mm Width Electric Decoiler
  • 1250mm Width Electric Decoiler

1250mm Width Electric Decoiler

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

1250mm Width Electic Decoil

Electric Decoil palys a import role in the roll forming machine. It is used to support the steel coil and uncoil it bin a turnable way. This coil holder can automatic work with together roll forming machine at the same time well, In this way, it save Labor cost and make the production line work more smooth. It also named coil roll holder, uncoiler, auto decoiler ect.
Auto Electric Decolier Specification

1. Suitable Material: Color steel plate, galvanized board, aluminum  plate
2. Width of Coil: ≤1250mm or According to client's requirement
3. Capacity：500KG
4. Operation: Manual and Automatic
5. Working Speed: 0-20m/min
6. Inner diameter: 480-508mm
7. Motor Power: 3KW
8. Voltage: 380V 50HZ 3phases or customerization
9. Size: About 1600*1300*1000mm

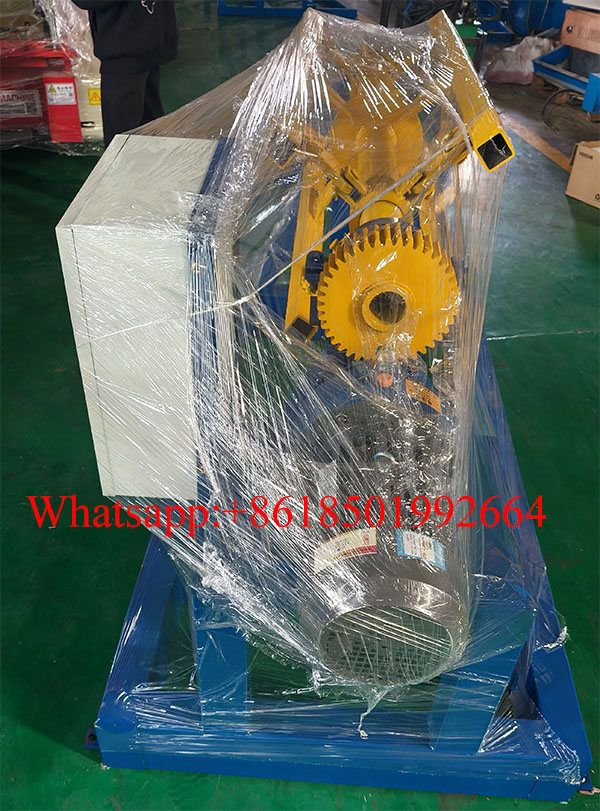

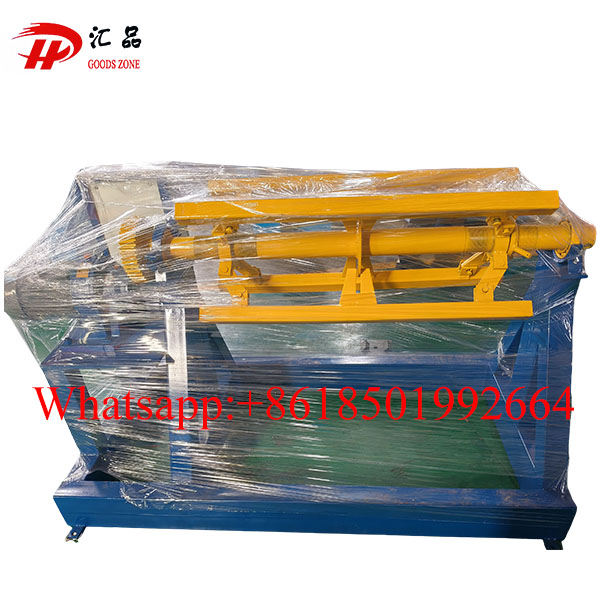

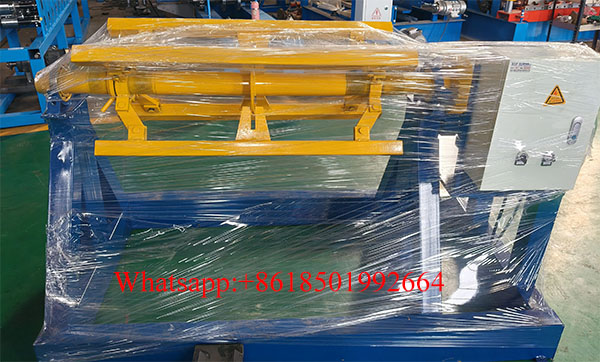

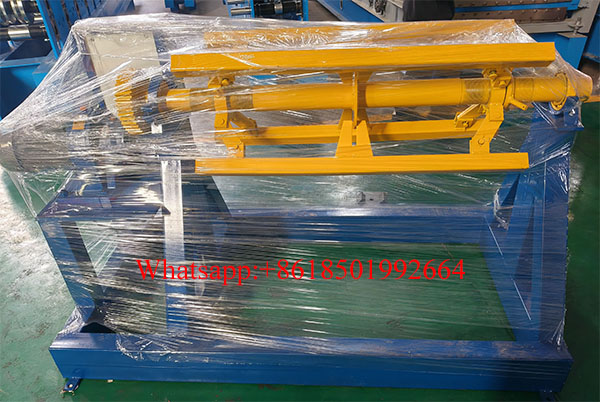

More Pictures of Electric Decoiler
