Description

1, Automatic Cut to Length Metal Sheet Cutting Machine With PLC Control

This Automatic Cut to Length Metal Sheet Cutting Machine With PLC Control is deisnged to leveling the metal coils, then cut into the desired length according to the parameters setting on the PLC control system. The machine is a ecomonic and functional equipment for the metal sheet processing industry.

2, Description of Automatic Cut to Length Metal Sheet Cutting Machine With PLC Control

Working Material: Pre-painted steel or aluminium coil, Galvanized steel coils, GI, PPGI, GL,PPGL

Thickness: 0.3-1.0mm

Width: Max. 1250mm ( also can customize based on you need)

Yield strength: 235-345Mpa

Cutter material: Cr12 mould steel

Working speed: 15 meters per minute

Type of cutting: Hydraulic cutting

Size of machine: 2500mmX1500mmX1400mm(L*W*H)

Control modeL: PLC control

Electric condition: 380V/3Phase/ 50HZ (or according to customers requirement)

Main motor power: 4 KW

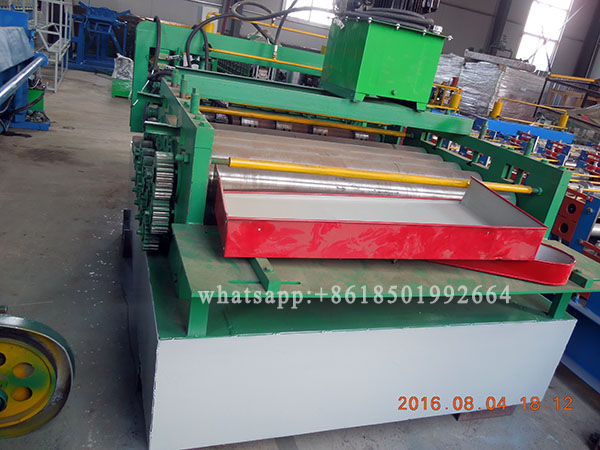

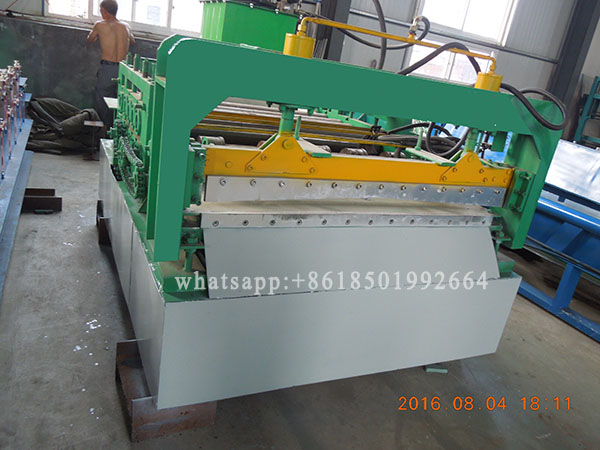

3, Automatic Cut to Length Metal Sheet Cutting Machine With PLC Control show:

Automatic Cut to Length Metal Sheet Cutting Machine With PLC Control.JPG
