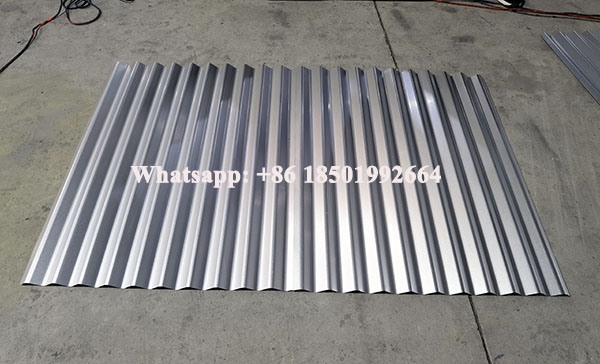

1, Machine Production:

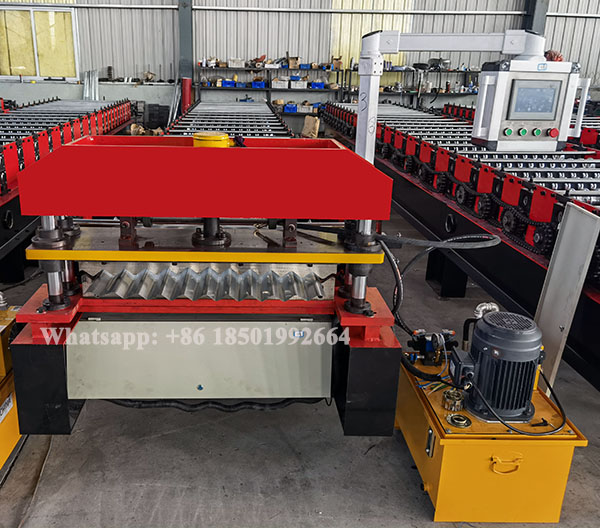

2, Myanmar Corrugation Roof Sheet Machine Details:
1), Host machine
Feeding device : The inlet can be adjusted
Hydraulic cutting : PLC add control system
Number of forming rows : 24 Rows
Roller shaft: Roller shaft material: 45# steel Dia:80mm
Roller: Roller material: 45# steel quenching treatment, surface chrome-plating treatment
Tile box:Bluing process
Speed: 25m/min
Machine structure:Archway structure
Main Power : 7.5 Kw
Transmission: By Chain
Frame structure: 350#H is internally welded with diagonally supported steel

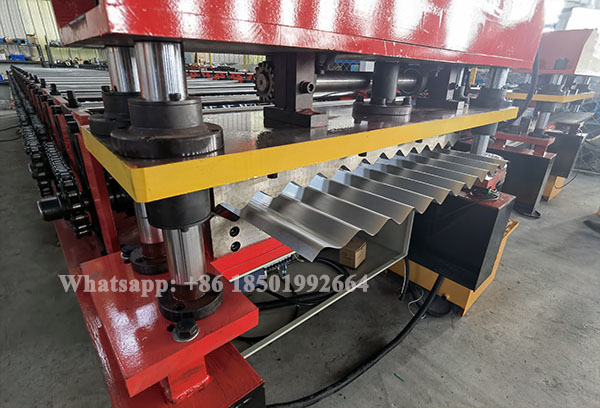

2), Hydraulic Cutting Device
Cutting Length And Quantity: Controlled by PLC control system, users input required length and quantity on touch screen
Material Of Cutting Mold: Cr12Mov, HRC 60-62
Cutting Length Measuring: Encoder measuring; Ormon Brand
Hydraulic Station Power: 5.5kw
Tolerance Of Cutting Length: +/-5mm
3), Control System
Frequency Converter : Delta
Screen : Touchable screen with buttons
Language : Chinese/English
Low-voltage electrical appliances:Schneider
Encoder:Omron
Features:It can control the cutting length, quantity, speed.
