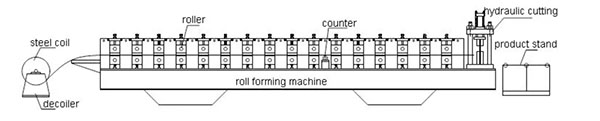

Coil Decoiler→Feeding Table→Roll Forming→Hydraulic Press→Cutting→Sheet Receiving Table
Raw Material--------------------Color Steel Sheet Coil/Glavanized Steel Coil
Feeding Width/Effective Width--------------------According to your needs
Thickness--------------------0.3-0.8mm
Shaft Station--------------------16 Stations

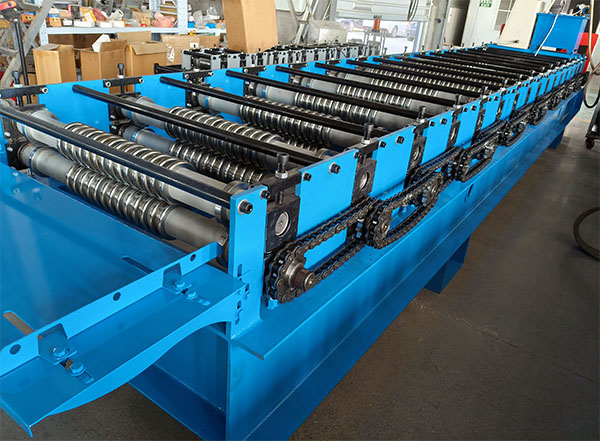

Transmission--------------------By Chain
Size of Chain--------------------1.0 inch
Material of Frame--------------------350H steel welding
Diameter of Shaft--------------------70mm(Solid shaft)

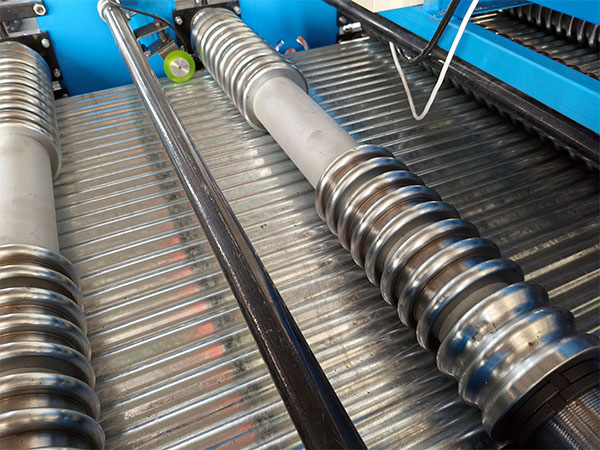

Material of Roller--------------------（hiht grade) 45#Steel Tempering treatment, hard chrome coating
