Description

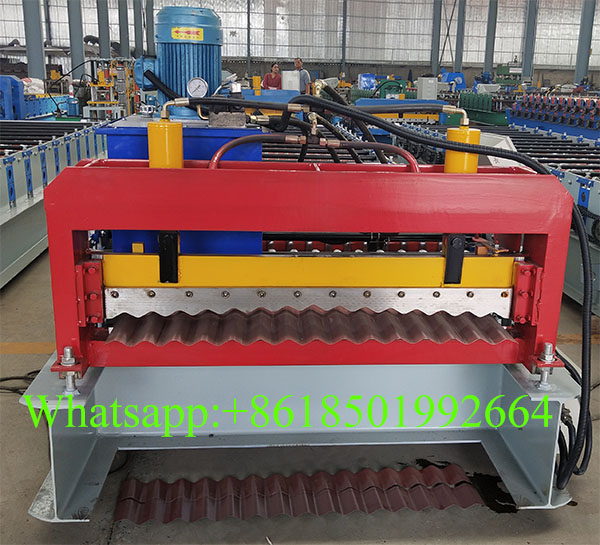

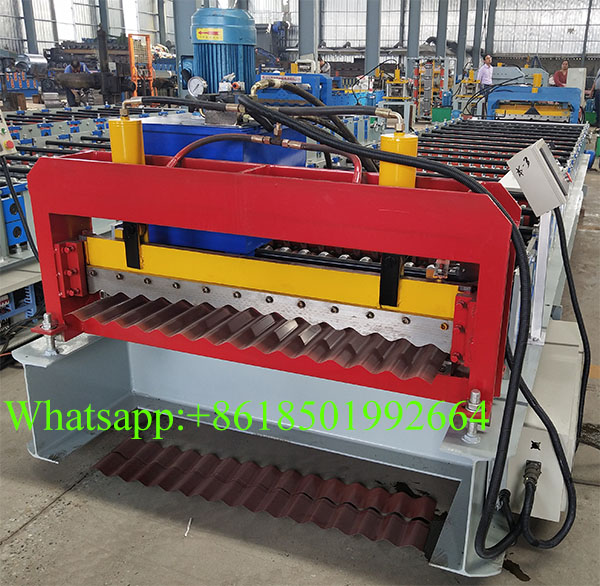

Matal Corrugated Roof Tile Roll Forming Machine
The whole set of water wave roofing panel roll forming machine inculd decoiler, main roll forming machine, hydraulic pump, PLC control system and product receiving table. If you want to learn more about this machine, please contact us freely.

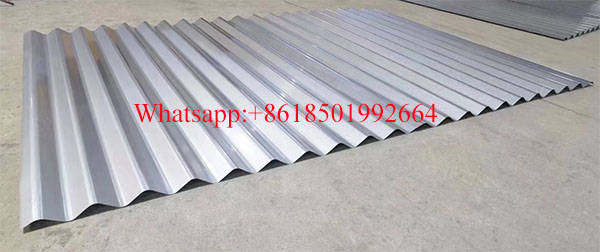

Specification of Corrugated Roof Sheet Machine *Suitable Material: colored steel plate, galvanized plate, or aluminium plate *Material Thickness: 0.3~0.7mm *Material Width: 1000mm (according to the profile) *Diameter of Shaft: 70mm *Roller Station: 15 steps (according to the profile) *Sidewall Thickness: 18mm *Main Frame: 8-15m/min *Motor Power: 4KW+4KW *Speed: 8-15m/min *Cutting Device: Hydraulic Cutting * Material of Blade: Cr12 *Drive Way: By Chain Application of Corrugated Sheet The corrugated sheet are widly used in workshop, warehouse, house and so on. In a world, it has a large market. More Pictures of Corrugated Roof Sheet Machine
