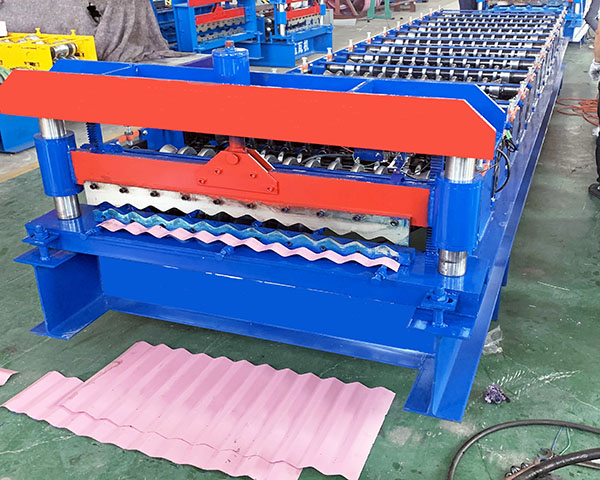

The corrugated sheet steel metal roof panel manufacturing machine has the characteristics of advanced technology, adopts continuous coil production after cold bending, determines the precision of long cutting parts forming shape, regular length, precise and consistent precision, good appearance and high forming strength workpiece.
Suitable Material:
Color steel plate, galvanized sheet
Feeding Coil Width:
Custom size
Shaft Station:
12 Rows
Main Motor Power:
5.5Kw ,7.5Kw
Main frame:
350H
Thickness Of Raw Material:
1.0mm-2.5mm
Transportation System:
Chain transportation
Thickness Of Chain:
1.5inches
Working Speed:
15m/min
Out Diameter Of Shaft:
¢80mm (solid shaft)
Shear Mould Materials:
Cr12MOV
Voltage:
380V 50Hz 3Phases
Material Of Roller:
45#steel adjustable treatment
Sideplate:
16mm or 20mm
