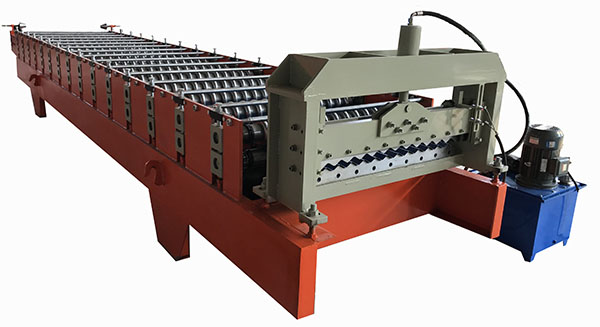

Gelombang Bulat Roof Wall Tile Cold Roll Forming Machine
| No. | Item | Specification | |
| 1 | Materials | Width | 914mm/1000mm.1220mm,1219mm,1250mm, 940mm |
| Material | Ppgi/gi/gl/Alu-zinc | ||
| Thickness | 0.3-0.6mm | ||
| Hardness | Normal hardness | ||
| 2 | Gelombang Bulat Roof Wall Tile Cold Roll Forming Machine | Forming Frame body | 350mm Height |
| Stations | As usual, 15 steps, but we will adjust based on detailed drawing | ||
| Rollers | High grade No 45# steel with hard 0.05mm chromed | ||
| Shaft | High grade No 45# steel | ||
| Diameter of shaft | 70-80mm | ||
| Chain size | 1inche-1.5inch | ||
| 3 | Control Device | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | 4KW | ||
| Language | English or chinese or Russia | ||
| 4 | Cutting Device | Cutter materials | High grade Cr12 steel |
| Cutting system | Hydraulic Cutting | ||
| Hydraulic pump | 3KW | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler for materials coil | Manual control for free | Can bear 5 tons materials |
| 6 | Finished product | Receiving station | Manual one, 3 meters to 6 meters length |
| 7 | Machine's product usage | Zinc steel roof and wall panel | these sheets are widely used for building, like warehouse,factory adn so on. |
More details, welcome to contact us, before confirm order, our professional engineer will confirm all technical dates and drawing sizes. If you have special requirement, our company also can customize different model Gelombang Bulat Roof Wall Tile Cold Roll Forming Machine and other roof tile forming machine for you!
