Barrel Corrugated Roofing Sheet Roll Forming Machine

Barrel Corrugated Roofing Sheet Machine.jpg

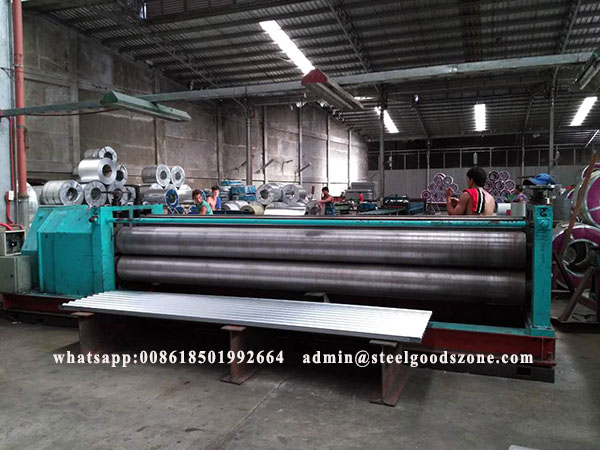

1, Barrel Corrugated Roofing Sheet Roll Forming Machine Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

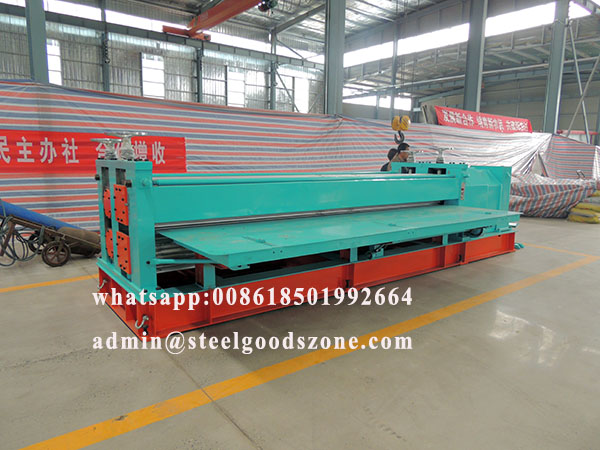

Barrel Corrugated Roofing Sheet Forming Machine.jpg

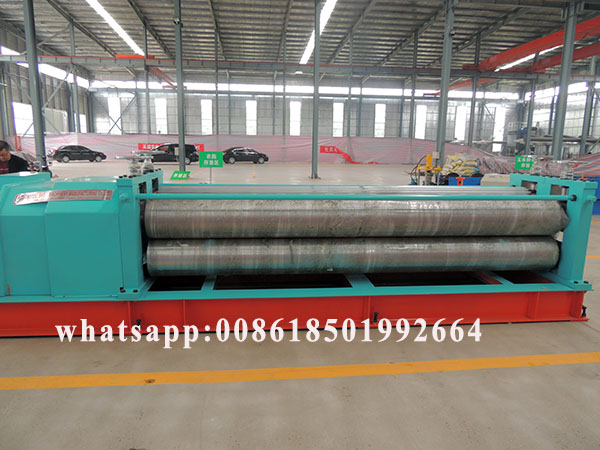

2, Roller of Barrel Corrugated Roofing Sheet Roll Forming Machine:

Barrel Corrugated Sheet Roll Forming Machine.jpg

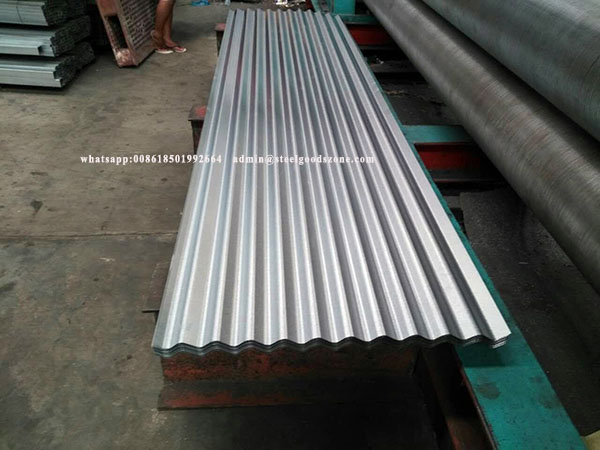

3, Finished product of Barrel Corrugated Roofing Sheet Roll Forming Machine:

Barrel Corrugated Roofing Sheet Roll Forming Machine.jpg

4, Main details of Barrel Corrugated Roofing Sheet Roll Forming Machine:

1), Name of Goods：SHEET CORRUGATION MACHINE

2), TYPE: CZGZ-40E

3), TECHNICAL SPECIFICATIONS:

EQUIPMENT WEIGHT: 8.2TON

OUTLINE DIMENSIONS：5700X2000X1502mm

BEFORE/AFTER: 914mm/800mm

LENGTH OF THE SHEET: 3900MM

WIDTH OF THE SHEET : 750 MM TO 1000 MM

THICKNESS RANGE OF SHEET: 0.14 MM TO 0.3 MM

MATERIAL TO BE CORRUGATED: FULL HARD GALVANIZED SHEETS

DEPTH OF WAVE : 18MM

PITCH OF WAVE : 76MM

DRIVE: 11KW

SPEED: 10-12 STROKES PER MINUTE

Output: 2-4 tons per hour

CORRUGATION PARAMETERS : The tolerance of the width, depth, No,of waves of the roofing sheet after corrugated in accordance with JIS G3316 (1987) standard.

Molding width range: 1000mm below. The total thickness can not exceed 0.4mm.
