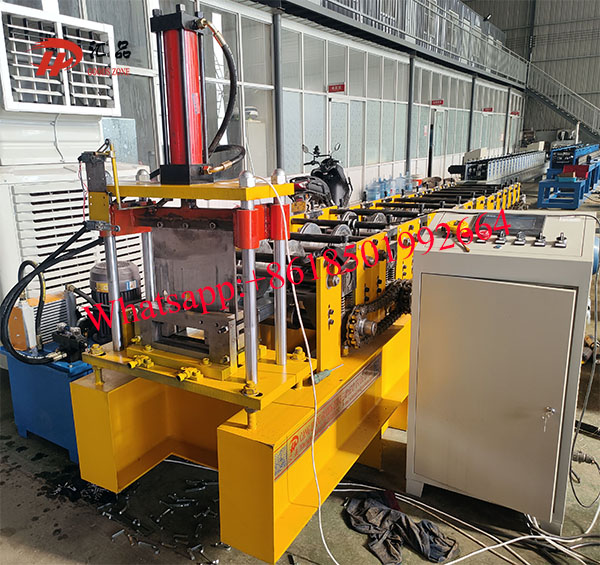

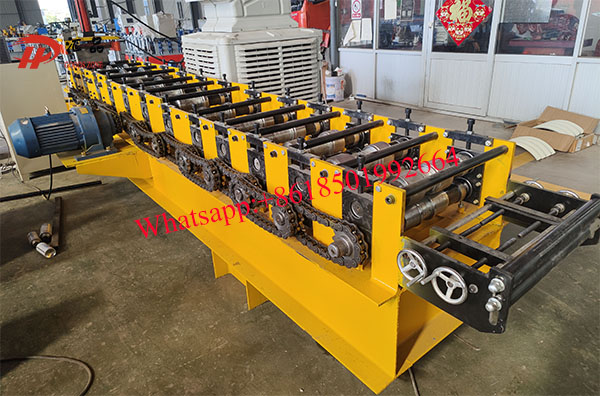

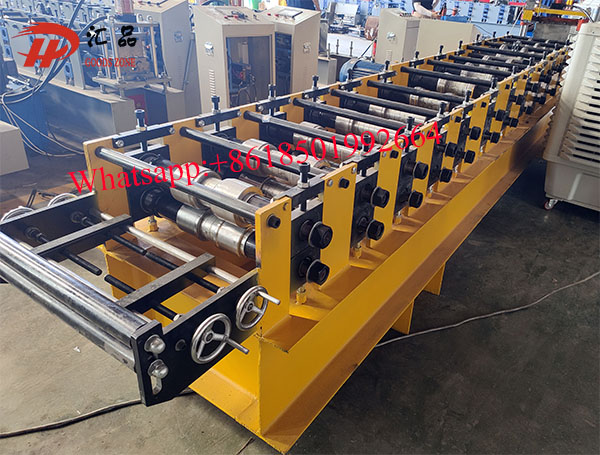

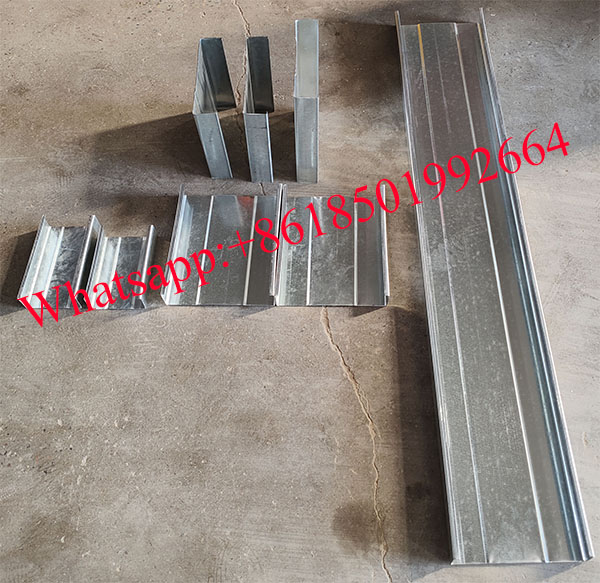

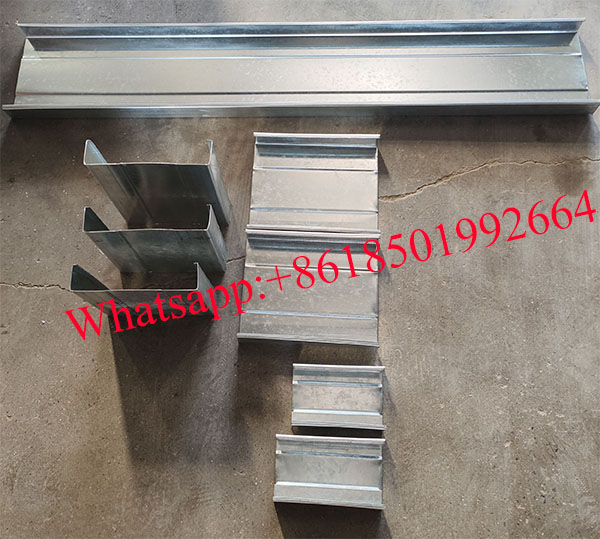

This hiht speed U channel frame roll forming machine speed can max reach 45m/min, and one machine can produce many different size of U channel. If customer need a large of quantity for this U frame everyday, this kind of machine will be a good choose.
*Suitable material: colored steel plate, galvanized plate
*Material thickness:1-1.5mm
*Drive Way: By Gear
*Diameter of shaft: 70

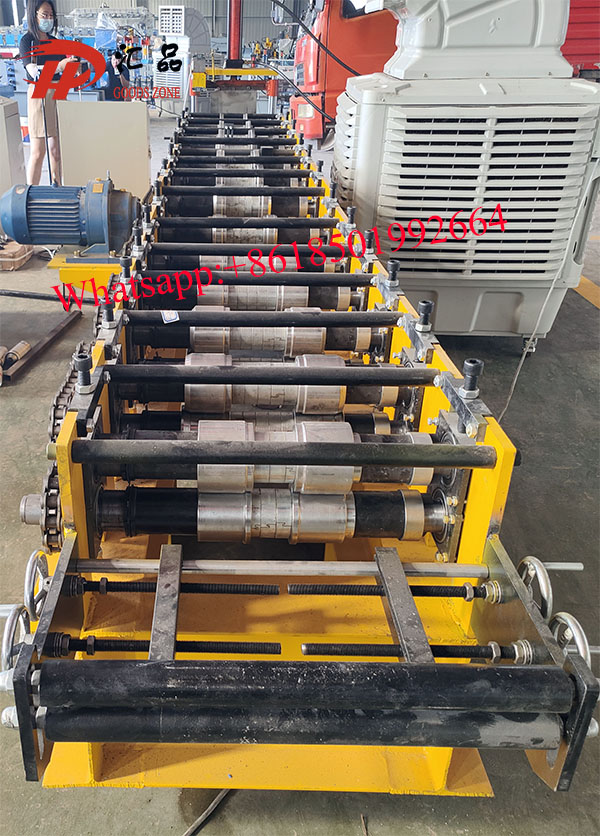

*Roller Station: 11 groups
*Sidewall Thickness:18mm
*Main Frame: Whole set of square pipe
*Motor Power: 7.5KW
*Hydraulic Power: 15KW
*Speed: 0~45m/min
*Voltage: 380V 50HZ 3Phase

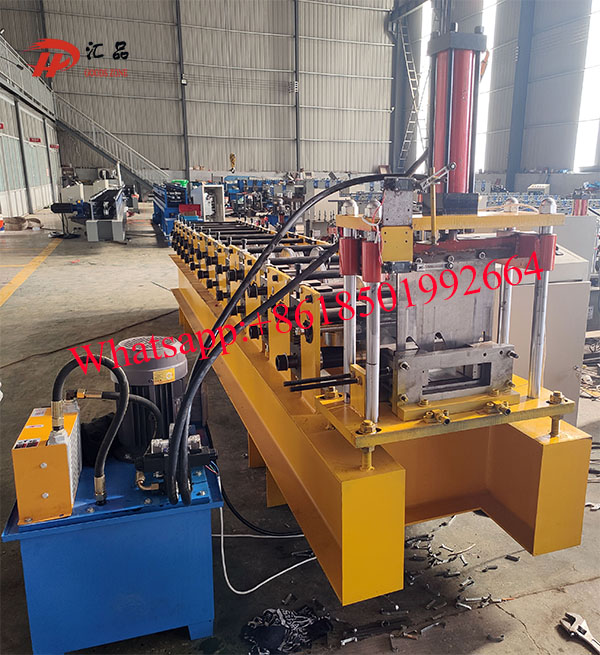

*Cutting Device: No Stop Hydraulic Cutting
*Material Of Blade: Cr12
*Machine Weight: About 2900Kg
*Size: About 7000m×1300mm×13500mm(L*W*H)
*PLC System: Delta brand with touch scree
*Language: English/Arabic/Spanish/France
*Manual Decoiler -------------------- 1Unit
*Main Roll Forming Machine -------------------- 1Unit
*Hydraulic pump -------------------- 1Unit
*PLC Control Cabinet -------------------- 1Unit
*Auto Receiving Table -------------------- 1Unit
*Package Machine -------------------- 2Unit
*Spare Part -------------------- 1Unit
