Two Or Three Wave Highway Guardrail Forming Machine With Holes

1, Main technical dates:

1), Model No: Two Or Three Wave Highway Guardrail Forming Machine With Holes

2), Max coil thickness: 3.5mm

3), Coli material: Steel or other

4), The bearing capacity of manual decoiler: 5 tons

5), shaft material: 45#steel

6), Out diameterm: 100mm

7), Forming steps: 20 stations

8), Transmission: Differential gear transmission

9), Forming speed: 10-15m/min

10), Main motor power: 15kw

11), Voltage: 380V50HZ Three-phase or you need

12), Dimension: 20.5*1.2*1.5m (L*W*H)

13), Cutting: Hydraulic cutting

14), Cutting power:11kw

15), Blade material: Cr12 steel with quenched treated 60-62

16), Control system: PLC(Delta)

17), Length tolerance: 2mm

18), The whole line including: Hydraulic decoiler, roll forming machine, cutting part, PLC control system, run-out table.

19), Machine's Product:

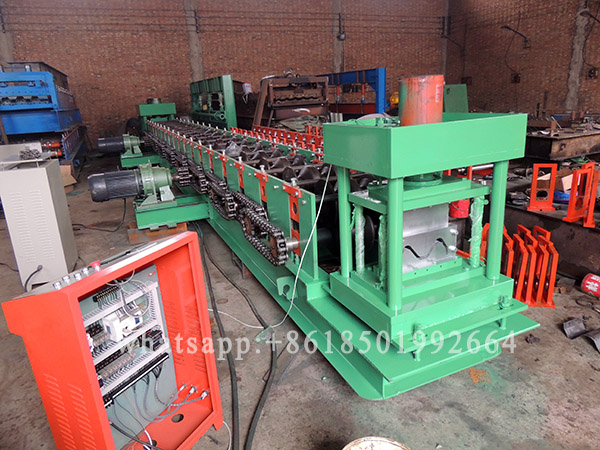

Two Or Three Wave Highway Guardrail Forming Machine With Holes.jpg

2, Main component:

1), Manual Uncoiler

   Usage: It is used to support the steel coil and uncoil it in a turnable way.

   The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm

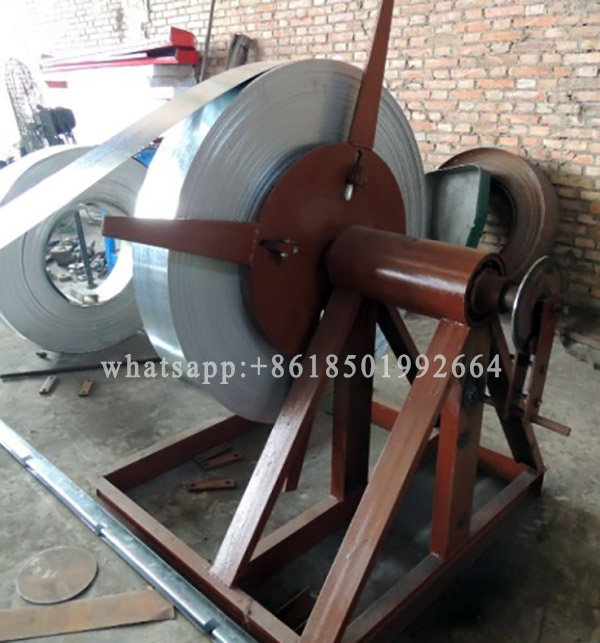

Two Or Three Wave Highway Guardrail Forming Machine With Holes.jpg

2), Feeding Table

    Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3), Main Roll Forming Machine

     Material of rollers:45# steel,roller surfaces polishing, hard plating.

     The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

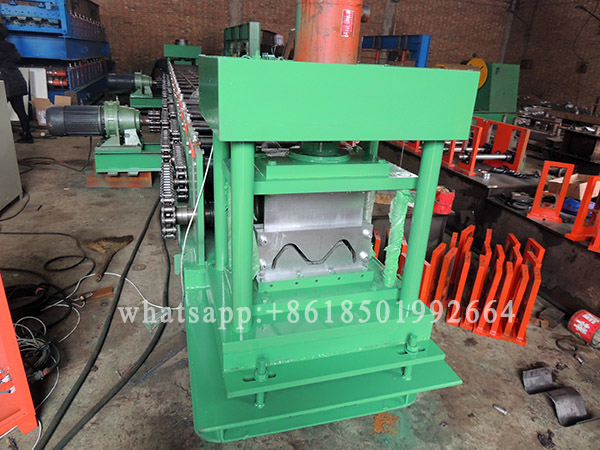

Two Or Three Wave Highway Guardrail Forming Machine With Holes.JPG

4), Hydraulic System& Computer Control

    Cabinet: Power:5.5kw,Hydraulic oil:40#

    Hydraulic oil into the hydraulic oil tank,the pump drive the cutter machine to begin the cutting job.the target piece`s length is adjustable and digit of it can be adjusted.Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA

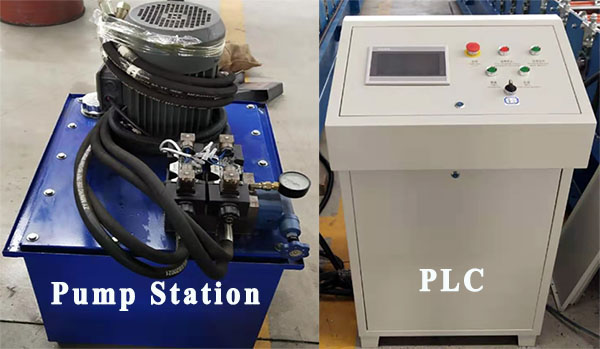

Two Or Three Wave Highway Guardrail Forming Machine With Holes.jpg

5), Shearing Mechanism

    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: ;Cr12,quenching treatment

Two Or Three Wave Highway Guardrail Forming Machine With Holes.JPG

6), Output Table

  It adopts welded steel and supported roller to transmit the products, which is used to collect the finished products.

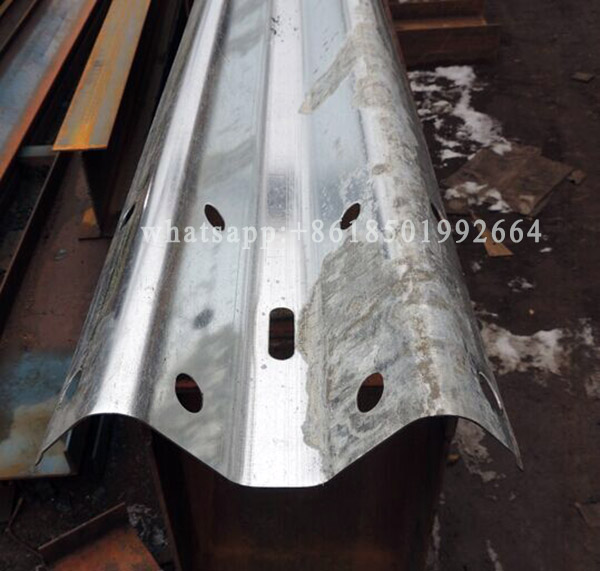

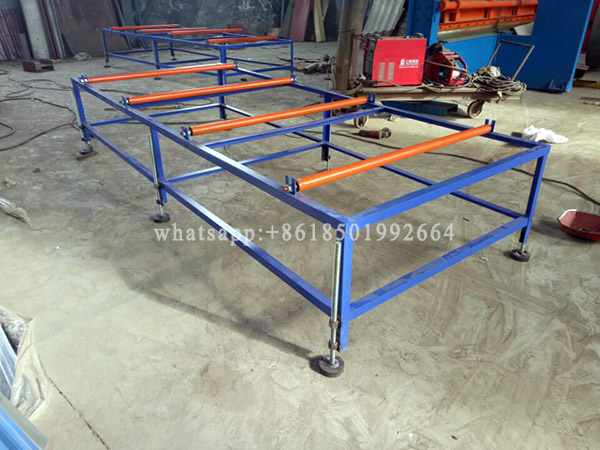

 Two Or Three Wave Highway Guardrail Forming Machine With Holes.jpg
