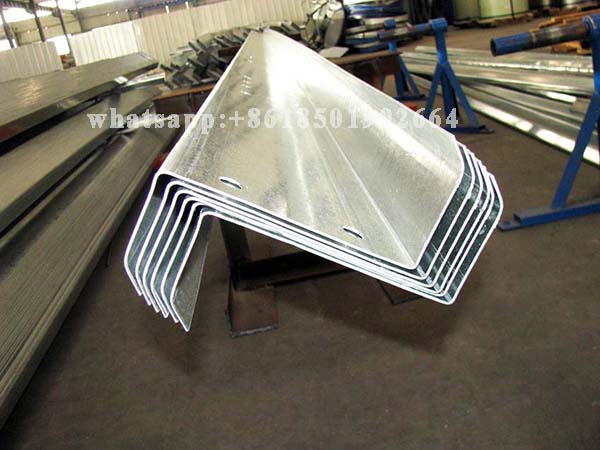

The finished Steel Z purlins are suitable for all constructions in which the spans are simply supported.Typical applications are building, roof, wall structure.
1), Suitable Raw Material: Galvanized Steel Coils, Strips Rolls
2), Width of Raw Material: Based on the design
3), Thickness of Raw Material: 2-3mm
4), Rolling Stations of Roll Former: 13-15 rows
5), Rollers Material: Gr15
6), Driving Motor Power: 15KW
7), Hydraulic Cutting and Punching Motor: 5.5KW
8), Production Line Speed: 8-25m/min
9), Diameter of Rollers Shaft: Φ85mm
10), Cutting Method: Hydraulic Post-cutting
11), Cutting Blades Material: Cr12
12), Cutting Tolerance: ±1.5mm
13), Electric Control System: Mitsubishi PLC, inverter and touching screen
14), Main Machine Weight: About 8.5 tons
1), Manual or Electric Decoiler........................... 1 set
2), Direction Guilder................................................1 set
3), Rollers Leveling Device....................................1 set
4), Holes Punching Deivce (optional)................1 set

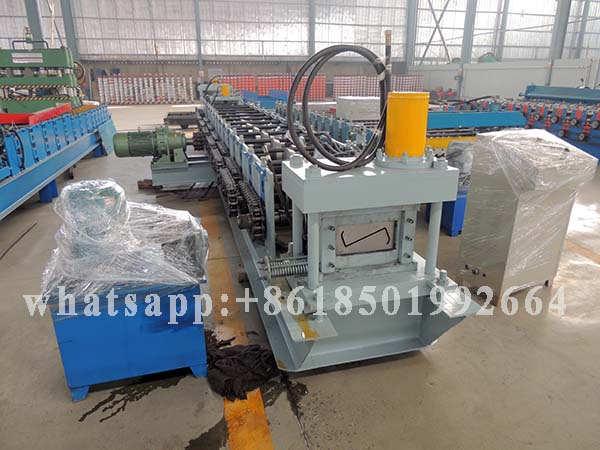

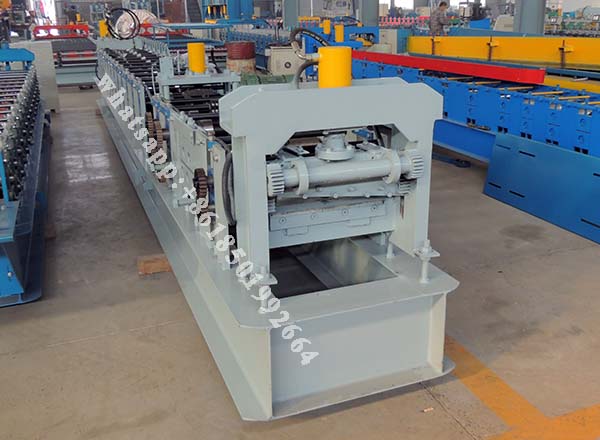

5), Rollformer Machine...........................................1 set
6), Automatic Hydraulic Cutter.............................1 set
7), Mitsubishi PLC Controller.................................1 set
