Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket

1, Main details of Shelves Rack Pillar Beam Upright Roll Forming Machine:

   1), Raw material: Color coated steel coil and galvanized steel coil

   2), Feeding width: Based on your feeding width

   3), Forming width: Based on the confirmed profile

   4), Thickness: 2.5mm( based on your requirement)

   5), Weight: About 4.5 Tons

   6), Dimension of main machine: About 5000mm*1200mm*1400mm

   7), Shaft steps: 14Steps

   8), Diameter of Shaft: 70mm

   9), Rolling speed: 0-15m/min

   10), Transmission: Hydraulic drive way

   11), Size of Chain: 2.0inches

   12), Material of Frame: 350H steel

   13), Thickness of middle plate: 20mm

   14), Material of Roller: (high grade) 45# Steel, quenching and hard chrome coating

   15), Main power: 15KW

   16), Material of Hydraulic cutter: GB Cr12 steel with quenched treated 60-62°C

   17), Control system: Full automatic control

   18), Cutting way: Mould cutting

   19), Voltage: 380V/50HZ,3PH (Also can do based on your country use

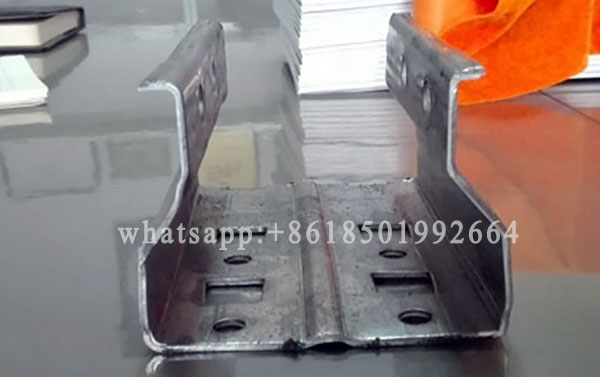

2, Profile of Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket:

Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket.jpg

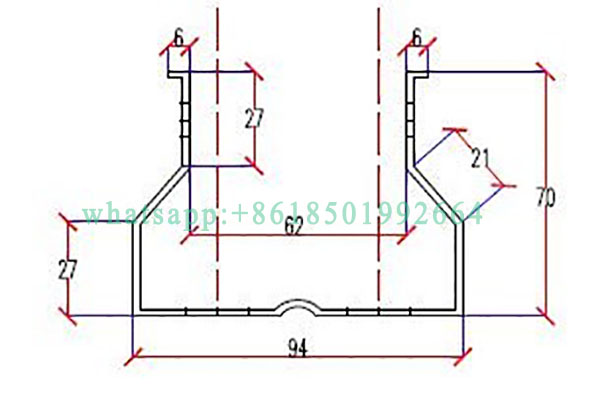

3, Sheet Profile of Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket:

Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket.jpg

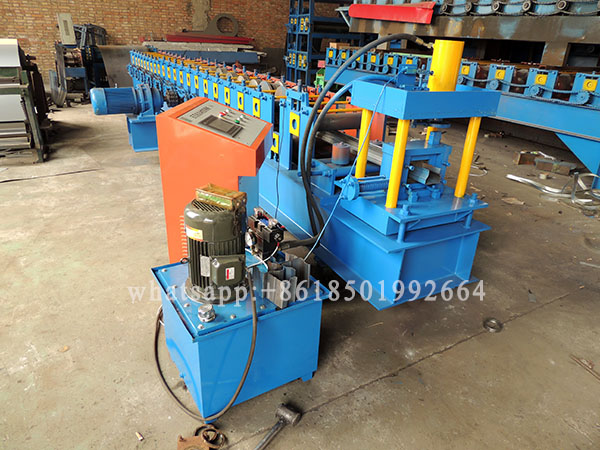

4, Cutter of Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket:

Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket.JPG

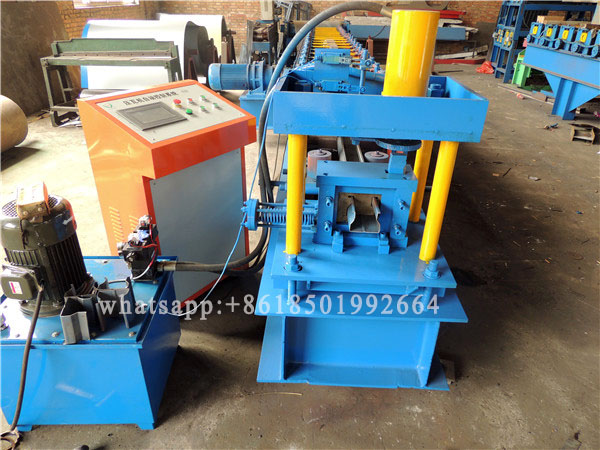

5, Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket:

Shelves Rack Pillar Beam Upright Roll Forming Machine For Supermarket.JPG
