Description

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm

The finished iron shelves storage rack panels are widely used in a home, business, store, or elsewhere to hold items of value that are being displayed, stored, or offered for sale.

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mmTechnical dates:

1. Suitable raw material: steel coil

2. Material thickness range: 1.5-2.5mm

3. Main motor power:15kw; hydraulic station:11kw

4. Forming speed: 6-8m/min(include the punching)

5. Quantity of rollers: 20 sets

6. Shaft Material and diameter: 80 mm, material is 40CR

7. Tolerance: +-2mm

8. Driving system: chains

9. Controlling system: Mitsubishi

10. Total weight: about 12 Tons

11. Voltage: 380V/ 3phase/ 50Hz

12. Material of forming rollers: Cr12 mould steel

13. Material of cutter blade: Cr12 mould steel with quenched treatment 58-62℃

Working Flow of Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

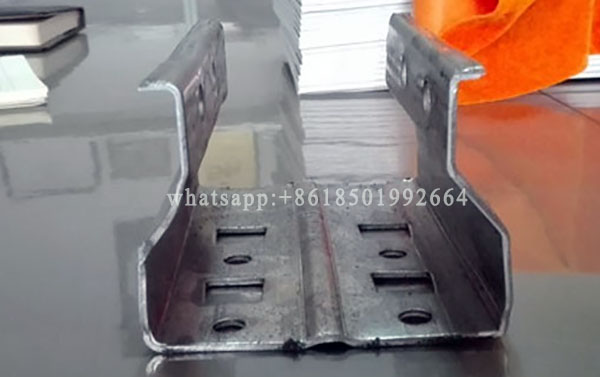

Profile of Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm:

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm.jpg

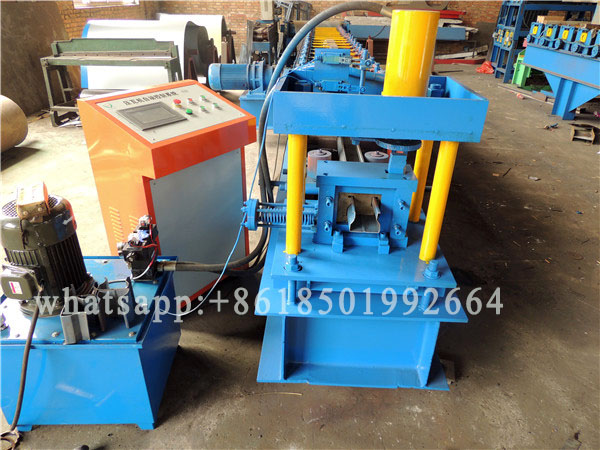

Cutter of Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm:

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm.JPG

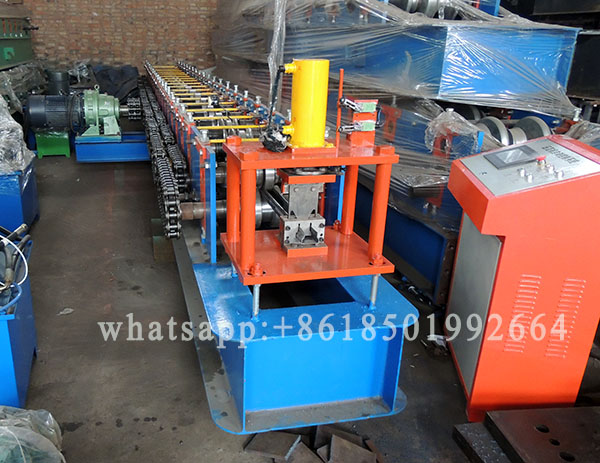

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm:

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm.JPG

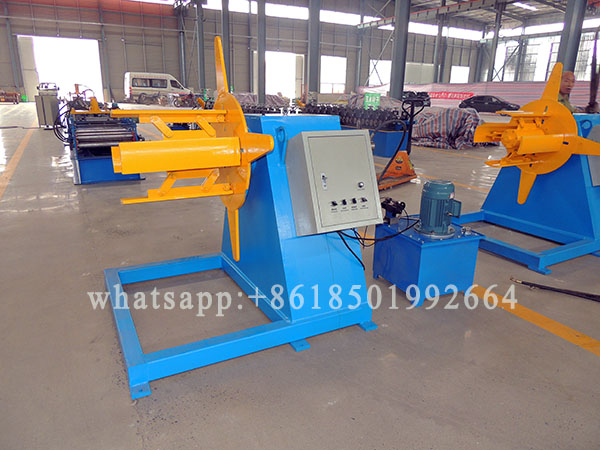

Uncoiler of Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm:

Shelf Storage Steel Coil Rack Roll Forming Machine Thickness 1.5-2.5mm.JPG
