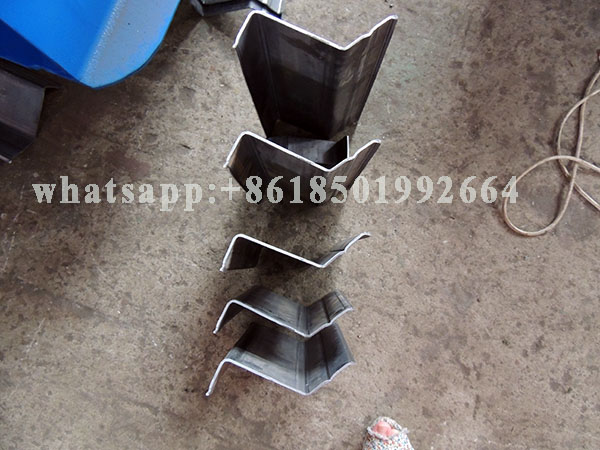

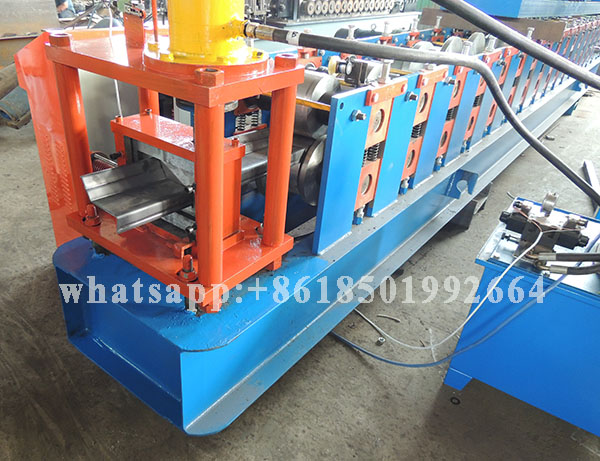

High Quality Low Price Z Shape Steel Purlin Forming Equipment in all metal or mixed building roof systems, purlin members are frequently constructed from cold-formed steel Z sections. Purlin roll forming machine is special designed for its production.
Decoiler→Flating→Feeding punching→Forming→Cut to length→Collection
1) Rolling Forming System
It can change different sizes automaticly and different size you just input data in PLC.
Main motor power: 11kw
Speed of forming: 8-12m/min
Material of roller : Gcr15 steel polished and coated with chrome HRC55-60°
Roller: 15 groups rollers
Material of main shaft : High grade No.45 steel after treatment
Diameter of main shaft: ø80mm
Driven: 1 chain
2) Hydraulic Punching and Cutting
punching Type: Hydraulic Punching
Punching material: Cr12 steel after treatment
Punching die: Cr12 steel after treament

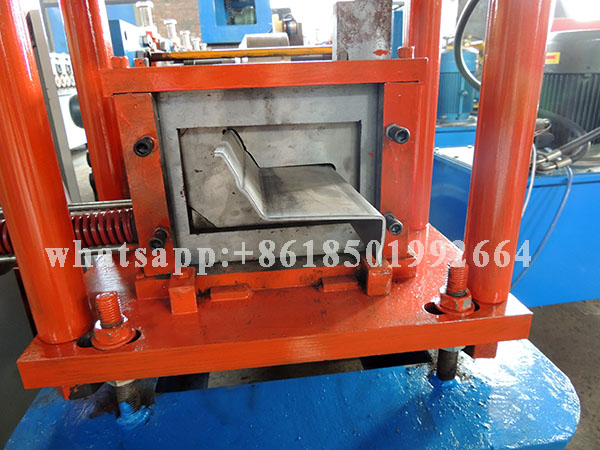

Cutting material: Cr12 steel after treatment
Hydraulic motor power: 5.5kw
3)Control system
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ±2mm
