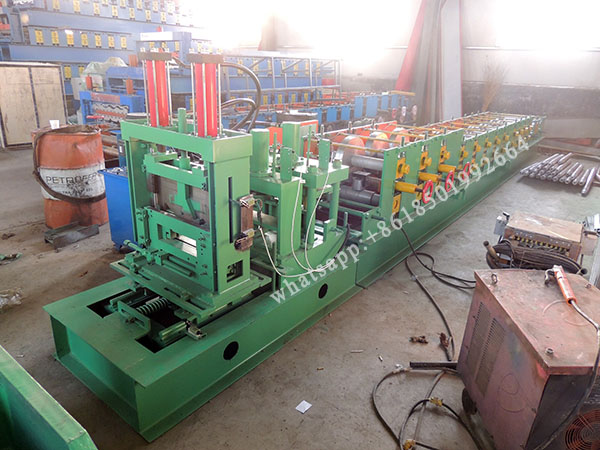

Galvanized Iron C-purlin Roll Forming Machine With Middle Production Capacity

The finished steel C purlins are used for an industrial building project, a garage, a veranda, a carport or any other application. This metal rollforming production line is making plain or punched C profiled purlins with high-quality, high-tensile steel material and the finished C-purlins made by metal rollformer can be in a variety of web heights and thickness variations.

1, Galvanized Iron C-purlin Roll Forming Machine With Middle Production Capacity Working Flow:

Uncoiling---Sheet Guiding---Straightening & Levelling---Hole Punching---Measuring Length Shearing---Roll Forming---Sheet to support tables

2, Galvanized Iron C-purlin Roll Forming Machine With Middle Production Capacity Main Technical dates:

1) Thickness of raw material:1.5mm-3.0mm, G300-345Mpa HR/CR/GI

2) Profile drawing of products (as per your requirement)

3) Forming Machine Structure: machine body formed by welding with high quality box iron

4) Shaft material:S45C quenched and tempered after finishing treatment

5) Main Shaft diameter:φ80mm

6) Rollers: GCr15 with heat treatment and hard chrome-plated HRC58-62

7) Number of forming stations: 12stations

8) Main motor power: 11kw

9) Cutting: hydraulic shearing after forming

10) Electronic controlling system: full-frequency PLC controlling system

11) Different production requirement will be operated from touch screen

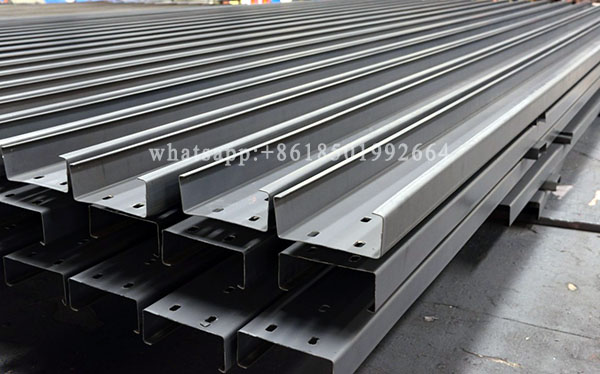

3, Galvanized Iron C-purlin Roll Forming Machine Product Profile :

Galvanized Iron C-purlin Roll Forming Machine With Middle Production Capacity.jpg

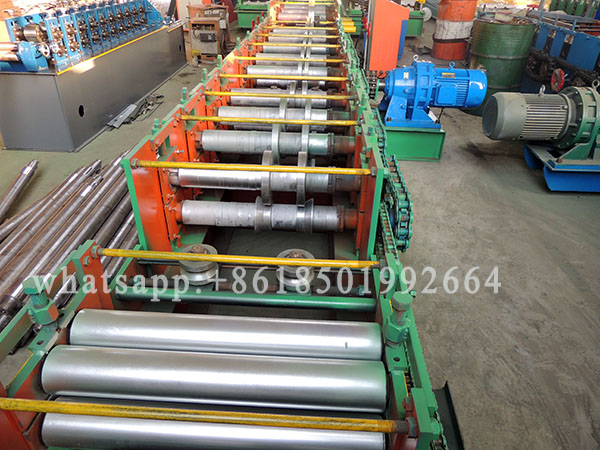

4, Galvanized Iron C-purlin Roll Forming Machine With Middle Production Capacity Roller:

Material of rib roller: GCr15, 40Cr, quenched

Galvanized Iron C-purlin Roll Forming Machine With Middle Production Capacity.JPG

Galvanized Iron C-purlin Roll Forming Machine With Middle Production Capacity
