*Suitable Material: Corlored steel plate, galvanized plate, or aluminium plate
*Material Thickness: 0.8-1.2mm *Material Width: 1000mm(according to the profile)

*Diameter of Shaft: 90mm *Roller Station: 12 Steps (according to the profile)
*Sidewall Thickness: 18mm *Main Frame: 350H Steel
*Motor Power: 4KW+4KW *Speed: 8-15m/min
*Cutting Device: Hydraulic Cutting *Material of Blade: Cr12
*Drive Way: By Chain

Component of C/U Purlin Roll Forming Machine

*Manual Decile -------------------- 1Unit
*Main Roll Forming Machine -------------------- 1Unit
*Hydraulic Pump -------------------- 1Unit
*PLC Control Cabinet -------------------- 1Unit
*Discharge Table -------------------- 2unit

*Spare Part -------------------- 1unit

Machine Feature

*Low Cost * High Efficiency * 18 Moths Warranty
*Reliable working * LowEnergy Consumption * Easy to Operate
*Long Worfing Life * Accurate * Full Automatic
*No Noise * Europe Standard

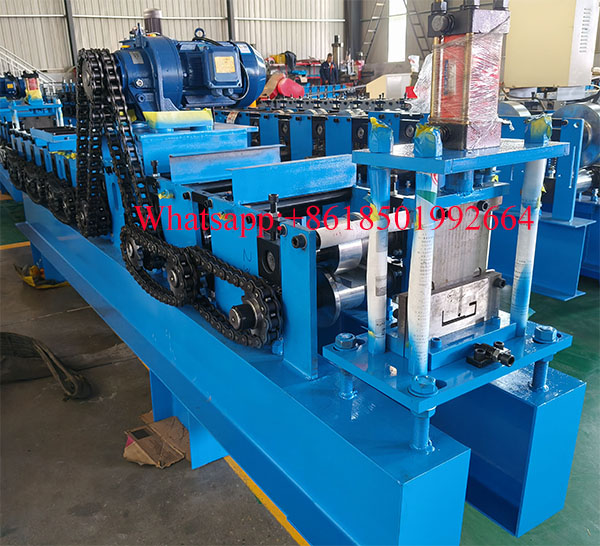

C/U Channel Purlin Frame Roll Forming Machine

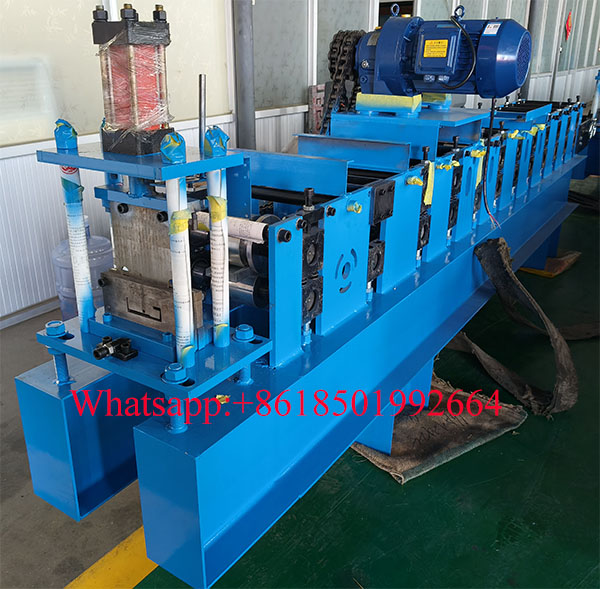

C/U Channel Purlin Frame Roll Forming Machine
