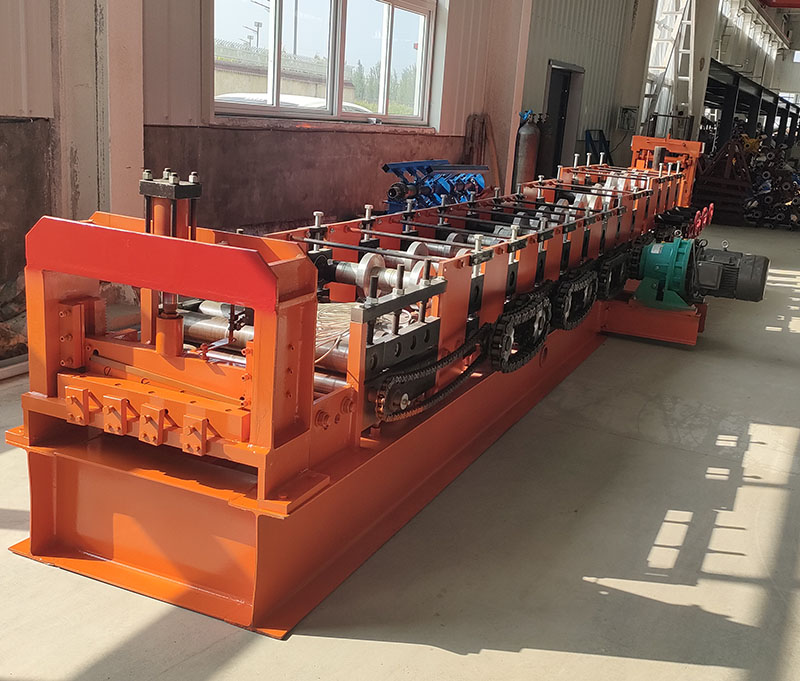

C galvanized section roof purlin making machine is a kind of cold roll forming machine that is used to produce C shaped steels. The finished pruducts, C purlin, are widely applied in supporting residential and commercial buildings as well as solar panel mounting structure and cable tray. Our C galvanized section roof purlin making machine is easy to operate with the touch screen controller PLC. This kind of machine can change the profile and specifications automatically without replacing rollers if different sizes of products are needed.
Suitable Material:Color steel plate, galvanized sheet
Feeding Coil Width:Custom size
Shaft Station:12 Rows
Main Motor Power:5.5Kw ,7.5Kw
Main frame:350H
Thickness Of Raw Material:1.0mm-2.5mm
Transportation System:Chain transportation
Thickness Of Chain:1.5inches
Working Speed:15m/min
Out Diameter Of Shaft:￠80mm (solid shaft)
Shear Mould Materials:Cr12MOV
Voltage:380v/50Hz/3Phases
Material Of Roller:45#steel adjustable treatment
Sideplate:16mm/20mm

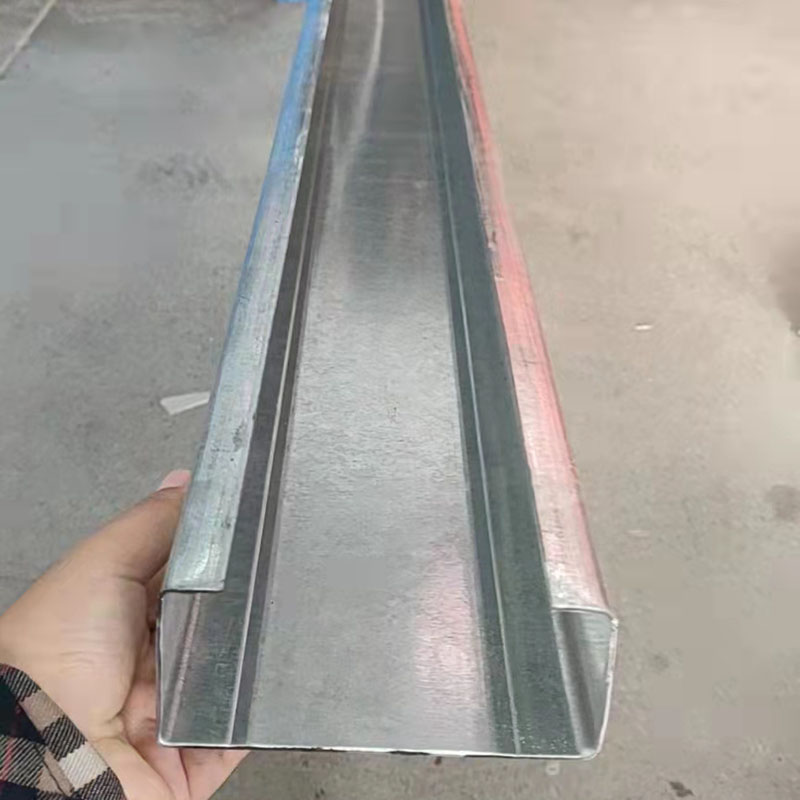

Finish Product Of C Purlin Roll Forming Machine

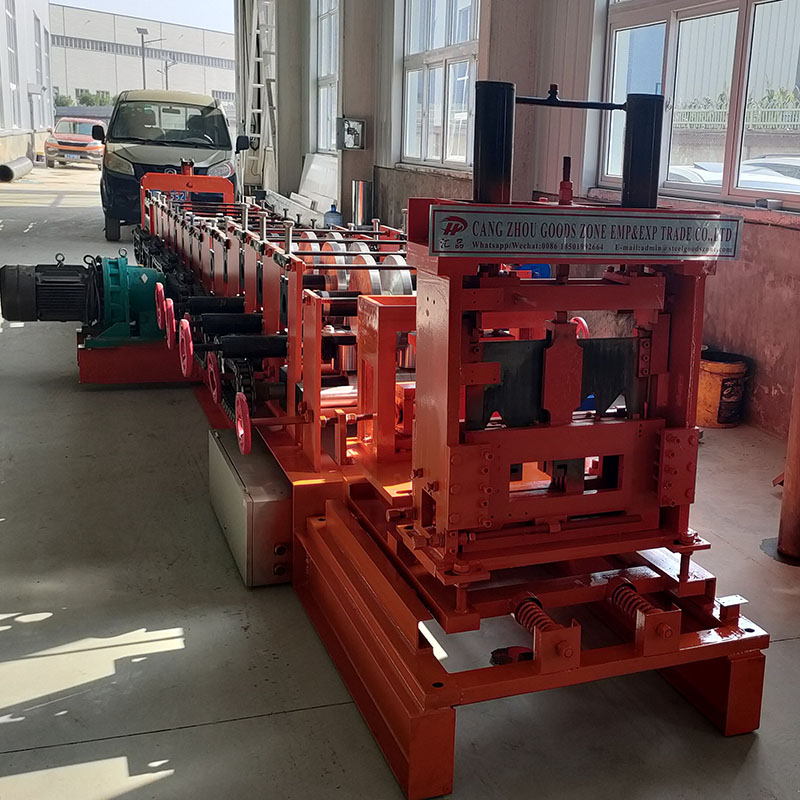

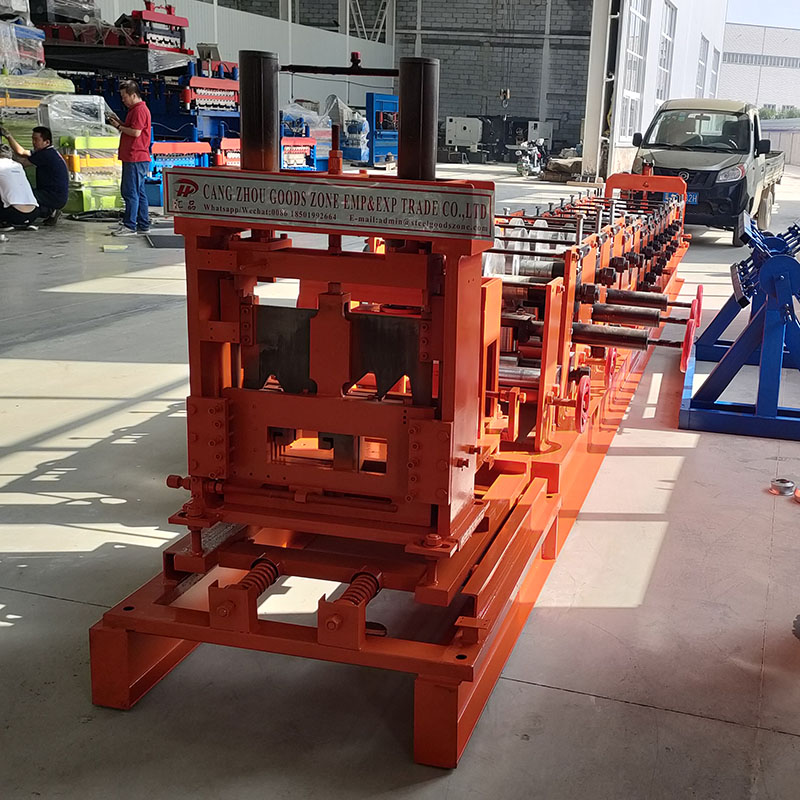

Cutter Of C Purlin Roll Forming Machine

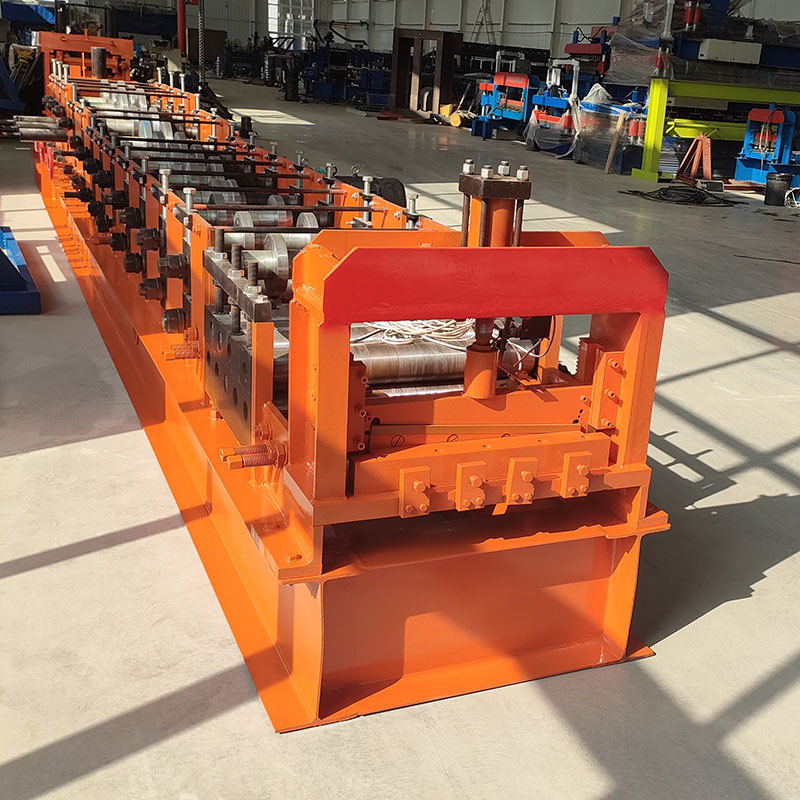

Pre-Cutter Of C Purlin Roll Forming Machine
