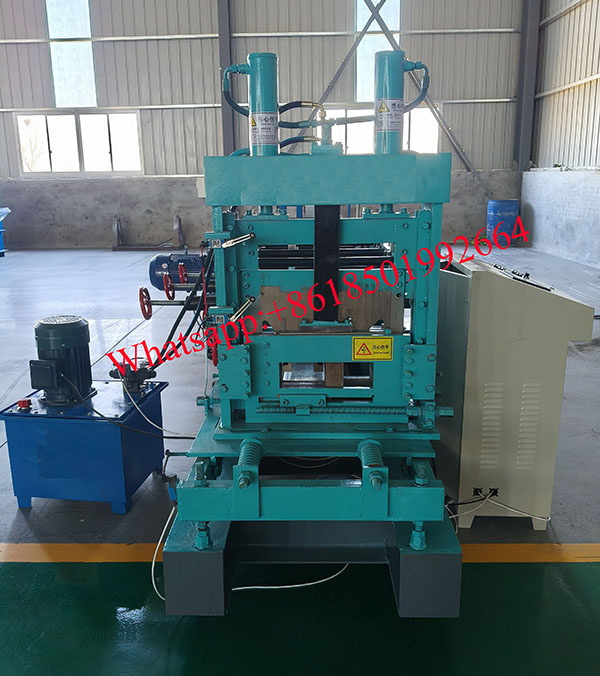

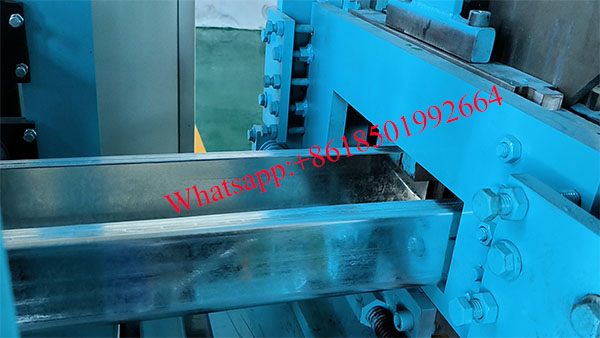

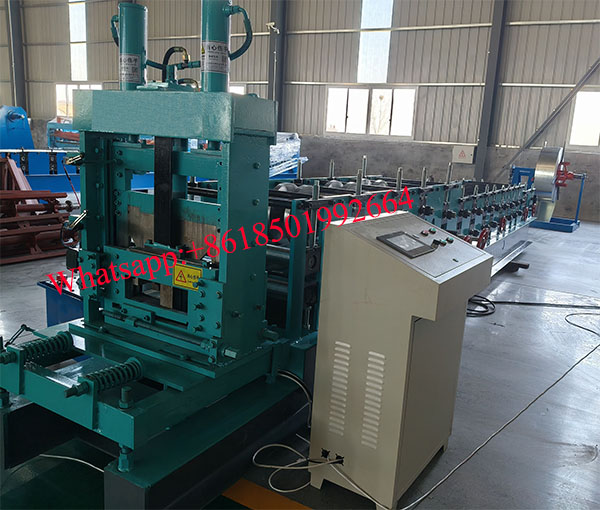

This C Z purlin frame roll forming machine get many different machine's function together. It not only can produce C channel frames, what's more, they are different measure of C Z Purlins. The C purlin and Z purlin can be interchange according to customer's requirements.
Meterial thickness: 1.5-3mm
Voltage: 380V/3PH/50HZ
Hydraulic Pressure:10-12Pa
Hydraulic Motor:22KW Other Motor:0.75KW×4

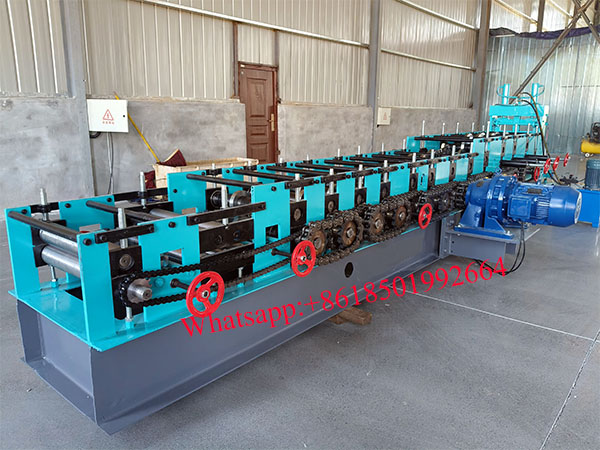

Main Forming Station:18 Steps
Forming Shaft:Diameter 85mm 45# steel thermal refining
Roller Material: GcR15 bearing steel quenching HRC 58-60°
Main Roll Forming Machine: 350H steel welded
Transmission: Chain and Sprocket,chain size 2.5 inch
Wall Plate: 20mm thickness
Punch Mould(if need) :Cr12 quenched

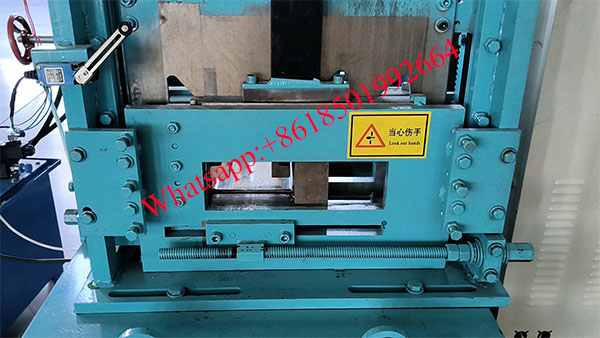

Blade Material: Cr12 mould steel with quenched treatment 60-62°
Forming Speed: 15-20m/min
Machine Size: About 10800*1250*1850mm
