Auto Interchange C Z Purlin Frame Roll Forming Machine
This C Z purlin frame roll forming machine get many different machine's function togther. It not only can produce C channel frames, but also Z channel frames, what's more, they are different measure of C Z purlins (produce C purlin size from C80 to C300, produce Z prulin size from Z140 to Z300, suitable material thickness from 1.5mm to 3mm). And the Cpurlin and Z purlin can be interchange according to customer's requirements.
Technical Parameters Of C Z Purlin Frame Machine
*Material Thickness: 1.5~3mm *Voltage: 380V/3PH/50HZ
*Hydraulic Motor: 22KW *Other Motor: 0.75KW×4
*Hydraulic Pressure: 10-12MPa *Main forming station: 18steps
*Forming Shaft: diameter 85mm, 45# steel thermal refining
*Roller Material: GCR15 bearing steel quenching HRC58-60°
*Main machine body: 350# H steel welded * Punch Mould(if needsed): Cr12 quenched
*Blade material: Cr12 mould steel witj quenched treatment 60-62°
*Forming Speed: 15-20m/min *PLC: Tedal brand with touch screen
*Weight: About 9.5 Tons *Size: About 10800*1250*1850mm

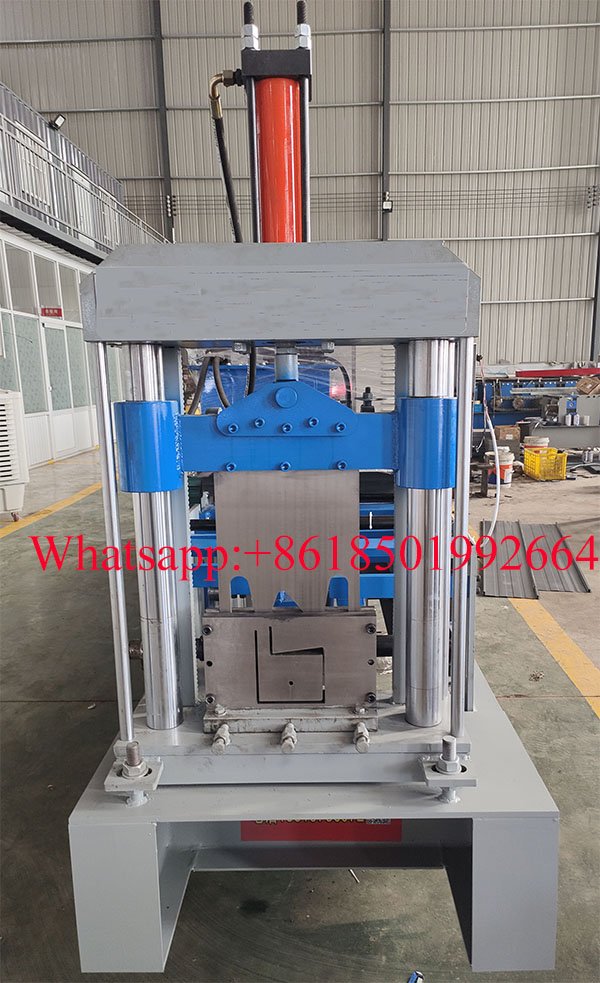

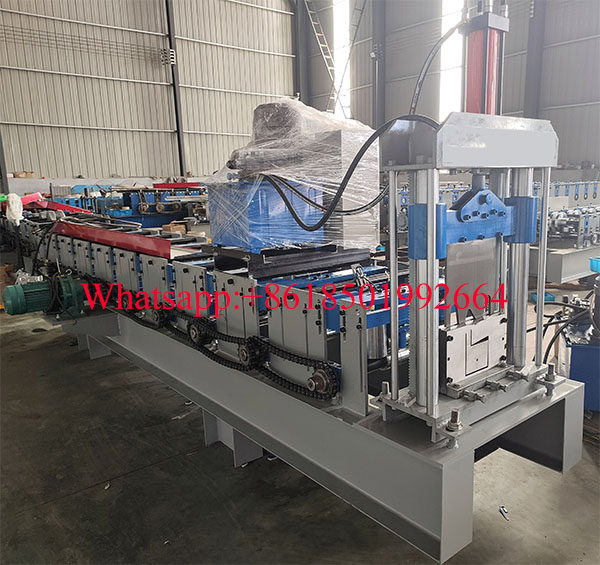

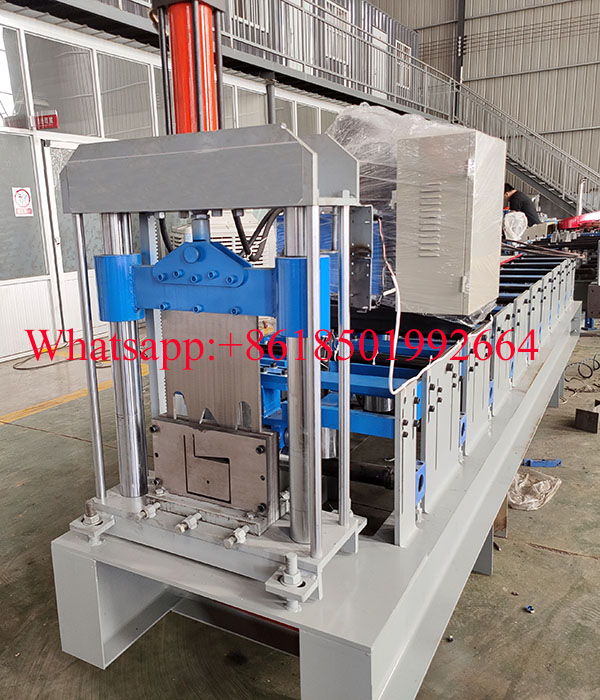

More Detail Pictures Of Auto Interchange C Z Purlin Frame Machine
