1, 820 Aluminum Corrugating Roof Tile Roll Forming Machine For Step Tile Roofing Sheet description:

    Product Name: 820 Aluminum Corrugating Roof Tile Roll Forming Machine For Step Tile Roofing Sheet

    Main machine size: About 6.5m*1.4m*1.3m (L*W*H)

    Main body materials: 350 H Steel

    Shaft station: 15 Stations

    Shaft materials: 45# Steel

    Roller materials: 45# Steel

    Drive way: By chain

    Chain size: 1 inch

    Wall plate: 16mm

    Control device: Full Automatic control and manual control

    Control panel brand: Taiwan delta

    Feeding materials: based on confirmed drawing

    Roof profile step length: customize

    Materlas thickess: 0.3-0.7mm

    Effective width: based on drawing

2, 820 Aluminum Corrugating Roof Tile Roll Forming Machine For Step Tile Roofing Sheet Working process:

   Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

3, 820 Aluminum Corrugating Roof Tile Roll Forming Machine For Step Tile Roofing Sheet Product:

 4, 820 Aluminum Corrugating Roof Tile Roll Forming Machine For Step Tile Roofing Sheet:

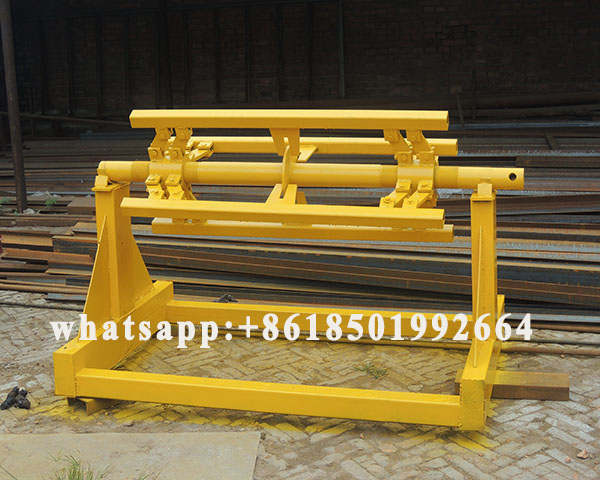

5), 820 Aluminum Corrugating Roof Tile Roll Forming Machine For Step Tile Roofing Sheet De-coiler for bearing steel coil:
