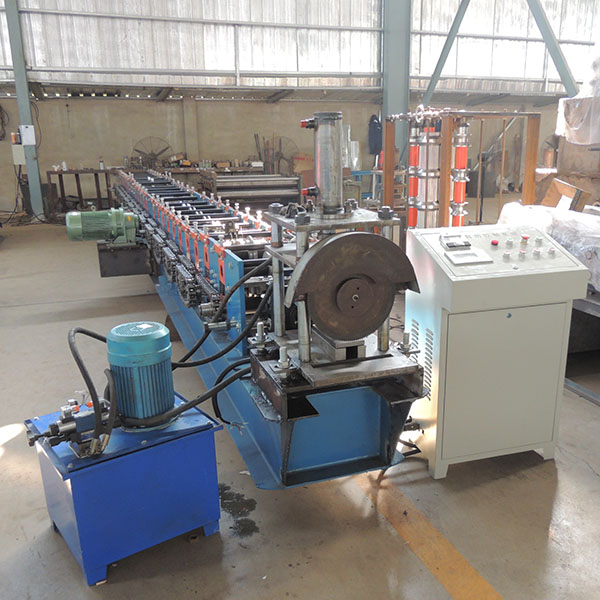

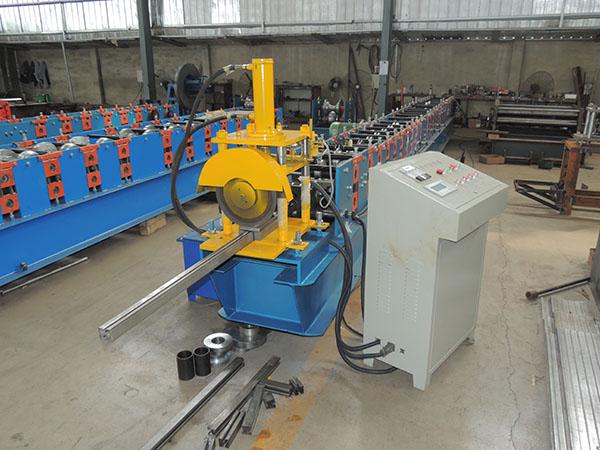

Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine
1. Main features of Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine
1). Easy operation,low maintenance cost
2). help to save material
3). Easy Operate cutting way and lower cost
2. Main Machine Parts of Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine
1) Automatic Zinc Furring Channel Roll Forming machine Feeding device：
Brand: CZGZ Original: China

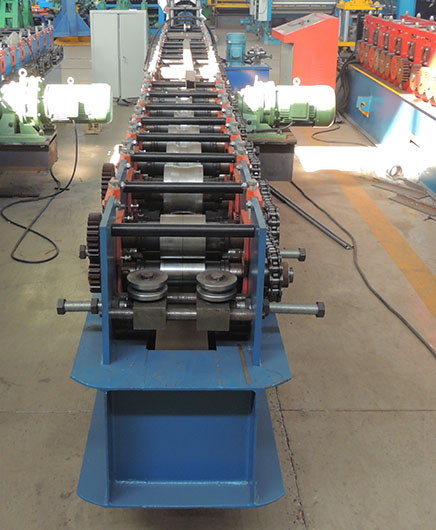

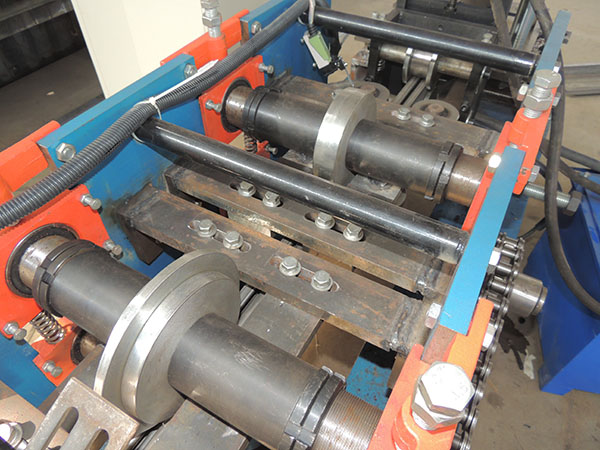

2) Rollers Of Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 350# H type steel by welding

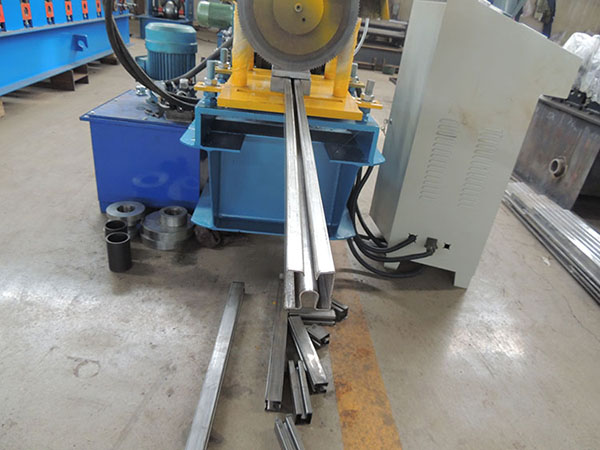

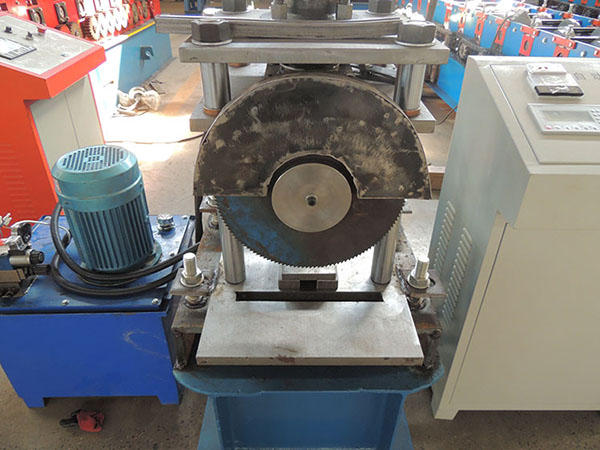

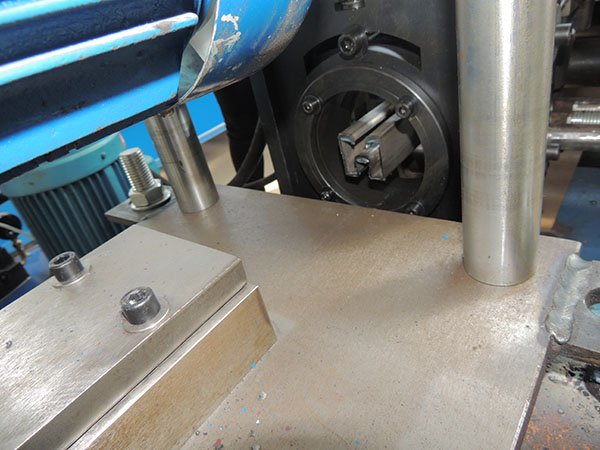

3) Cutter Device of Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine
No need to change cutter for different size, made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality steel plate by welding .Fly Saw cutting Way and hydraulic motor: 5.5KW, Hydraulic pressure range: 0-16Mpa.
4) More detailes of Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine
Suitable for material with thickness 1.0-2.0mm
Shafts manufactured from 45#,Main shaft diameter is 70mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form
Main motor=5.5KW,Frequency speed control.Forming speed approx.15m/min
5) Combined with: PLC, Inverter, TouchScreen,Encoder,etc
Cut-to-lengthtolerance≤±2mm
Control Voltage 24V
User's manualin English
6) After-sale service of Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine
The warranty of Color Coated Steel Light Gauge Steel C U Truss Roll Forming Machine is one year after the client receives the machine. Within the one year,we will courier the replacement parts to the client free of charge.
We offer technical support for the entire life of our machines.
We can send our technicians to install and train the workers in the clients' factories with extra cost.
