Battens Cold-rolled Sections Manufactured Machine For Structure
Application of Battens Cold-rolled Sections Manufactured Machine For Structure:
It provides builder with a high quality, strong, dimensionally stable and light steel section which is ideal for roofing applications.
Working flow of Battens Cold-rolled Sections Manufactured Machine For Structure:
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Main technical dates of Battens Cold-rolled Sections Manufactured Machine For Structure:
1). Processing Material: PPGI,GI
2). Processing Thickness(mm): 0.3-0.7mm
3). Material of Rollers: 45# steel, with hard chrome coated
4). Diameter of Shaft: 50mm
5). Production Speed: 0-20m/min
6). Driven Way: Chain Transmission
7). Cutting Model: Hydraulic Profile Cutting
8). Length Measurement: Encoder
9). Control Style: PLC
10). Main Power: 4kw
11). Voltage: 380V 50HZ or at buyer's request

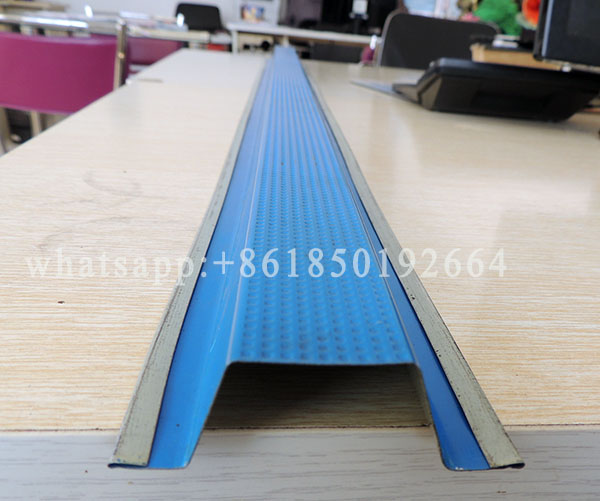

12). Machine's product:
