India Double Layer IBR Corrugated Roof Sheet Machine Technical dates:

   Roller material: 45# steel plated with chrome

   Roller station steps: Up layer 13 Stations; down layer 15 stations

   Main motor power: 4KW

   Hydraulic station power: 4KW

   Control system : Full Automatic Control And Manual Control

   PLC brand: Taiwan delta

   Processing Thickness: 0.3-0.7mm

   Material of Rollers: 45# steel, with hard chrome coated

   Diameter of Shaft: 70mm

   Production Speed: 0-20m/min

   Roller Driven: Chain Transmission

   Cutting Model: Hydraulic Profile Cutting

   Machine size: About 6.5m*1.4m*1.6m(L*W*H)

India Double Layer IBR Corrugated Roof Sheet Machine Working Flow:

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

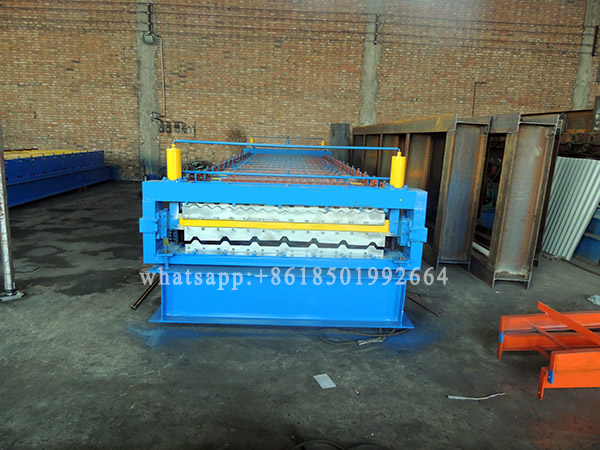

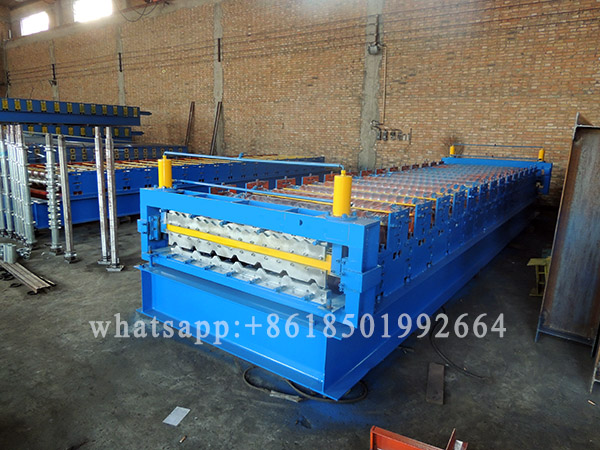

India Double Layer IBR Corrugated Roof Sheet Machine:
