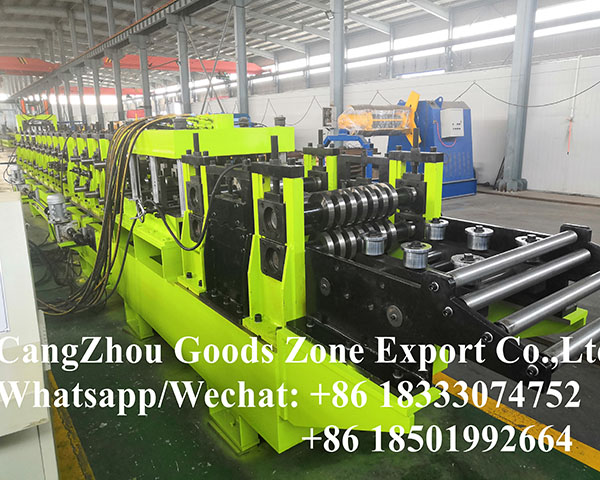

C/Z Steel Purlin interchangeable metal roll forming machine
We are the manufacturer for C/Z Steel Purlin interchangeable metal roll forming machine equipment in North of China, one of the model type we do is the C purlin machine. In the modern time, the steel structure is an essential production for the construction. The CZ purlin is mainly used as the beam or the structure frame for workshop or buildings.

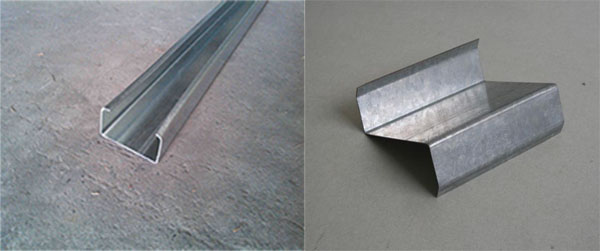

The standard size of C purlin is from 80mm to 300mm and Z purlin is 100-300mm, the material thcikness can be 1.5-3mm. As the usage, the customer can choose if punching holes or not on the product.
1. Components of the Hydraulic cutting Steel Profile Metal C Purlins Roll forming Machine with two models
No. | Part name | Unit | Qty |
1 | Decoiler | Set | 1 |
2 | Feeding part | Set | 1 |
3 | Main machine for Roll Forming | Set | 1 |
4 | Cutting system | Set | 1 |
5 | Punching | Set | 1 |
6 | Output table | Set | 1 |
7 | Control System(PLC) | Set | 1 |
8 | Hydraulic station | Set | 1 |
2. Main parameters of C/Z Steel Purlin interchangeable metal roll forming machine
1) Thickness of raw material:1.5mm-3.0mm, G300-345Mpa HR/CR/GI
2) Profile drawing of products (as per your requirement)
3) Forming Machine Structure: machine body formed by welding with high quality box iron
4) Shaft material:S45C quenched and tempered after finishing treatment
5) Main Shaft diameter:φ80mm
6) Rollers: GCr15 with heat treatment and hard chrome-plated HRC58-62
7) Number of forming stations: 12stations
8) Main motor power: 15kw
9) Cutting: hydraulic shearing after forming
10) Electronic controlling system: full-frequency PLC controlling system
11) Different production requirement will be operated from touch screen

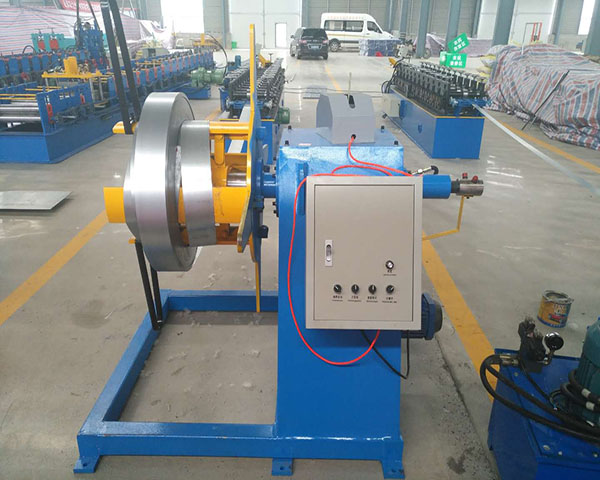

Un-coiler:

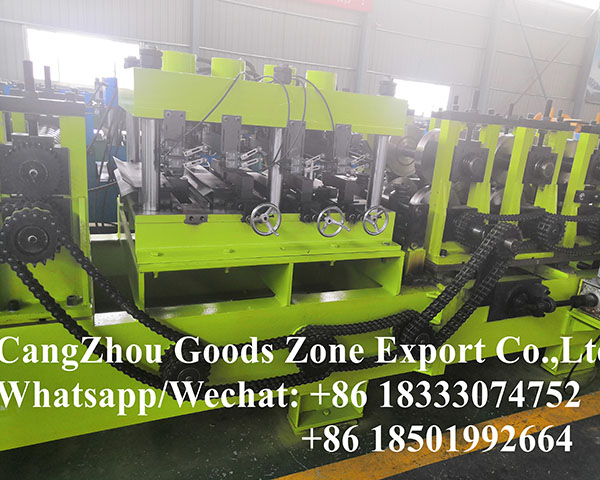

Materials Feeding Part:

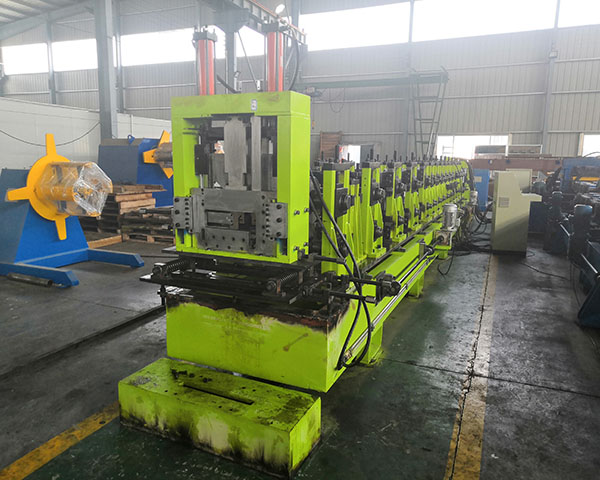

Wall panel of C/Z purlin machine:
3. Extra service if you place orders from us:
1). Guarantee : 12 months guarantee for the machine. If some parts broken naturally, we will supply them for free.
2).Engineers can offer overseas service if you arrange the round trip ticket and accommodation.
3).The spare parts ,such as limit switch ,solenoid ,fuse ,push button ,tube for free.
