1), Main Forming Machine: 1Set
2), PLC Control Box: 1 Set
3), Cutting Device: 1 Set
4), Pump Station: 1 Set

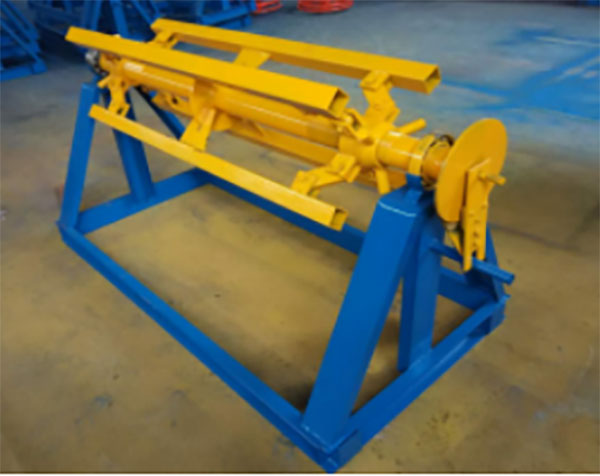

5), Decoiler: 1 Set
1), Raw Material: Color Steel Sheet/Material Grade:Q235
2), Feeding Width/Effective Width: According to sheet profile drawing
3), Shaft Station: 14 Stations
4), Thickness: 0.3-0.8mm
5), Material of Frame: 350H steel welding
6), Thickness of middle plate: 16mm
7), Transmission: By chain
8), Diameter of Shaft: 70mm
9), Control system: PLC Control Box
10), Cutting Way: Automatic&Manual Two Control Way
1), Material of Roller: (high grade)45#Steel Tempering Treatment, Hard Chrome Coating
2), Power of Main Motor: 5.5KW
3), Power of Pump Station: 4KW
4), Cutter Materials: GCr12 Steel with quenched treated 60-62°C
5), Shaft Materials: 45#Steel Plated Hard
